CM UF10060-7B (ZW700B-10060 alternative)
CM 10060-7B is manufactured as the equivalent, replacement, alternative, retrofit and analogue to Suez GE ZeeWeed 700B Seven Bore ZW700B-10060 / UF10 / 7B / S / 0.9 / 60
Effective membrane area (m²/ ft²): 60/645.9
Flow direction: Inside-out
Pore size: 0.02 μm
General Information
CM 10060-7B is manufactured as the equivalent, replacement, alternative, retrofit and analogue to Suez GE ZeeWeed 700B Seven Bore ZW700B-10060/UF10/7B/S/0.9/60, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water, industrial wastewater and municipal sewage. CM 10060-7B ultrafiltration modules use CM’s Seven Bore fiber technology with an inside-out flow direction. Seven Bore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced ultrafiltration technology, which makes CM 10060-7B ultrafiltration membrane modules the most robust PES (polyether sulfone) UF membrane on the market.
The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

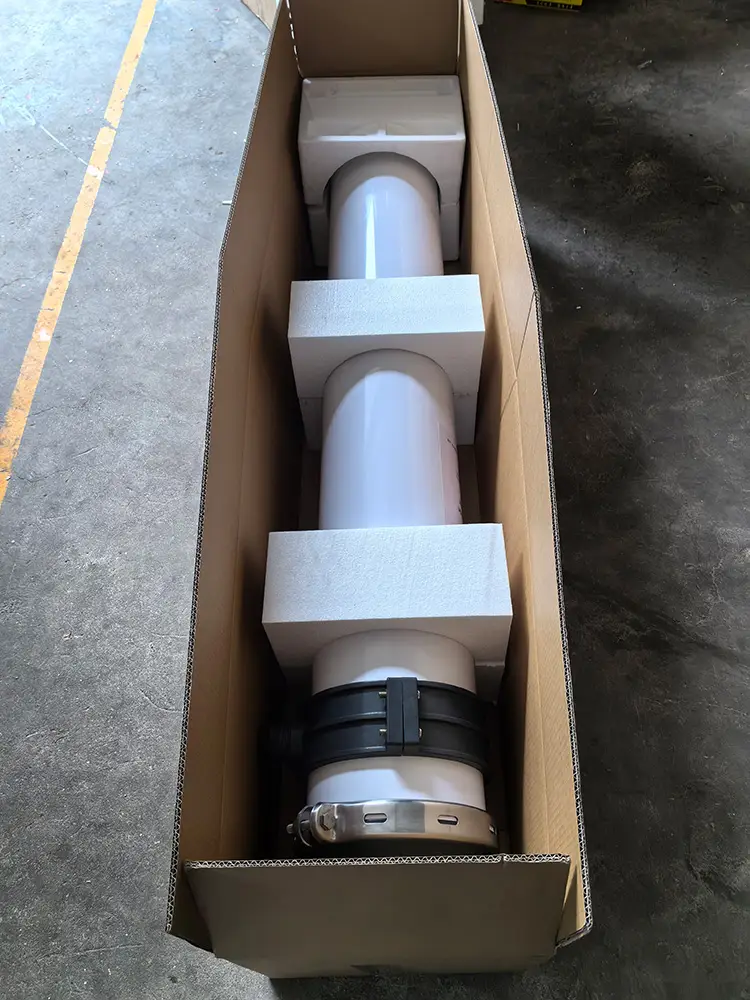

Product Photo
Configuration Table
| Specifications | |
| Brand | CM |
| Max Pressure bar | 7.5 |
| Max Temperature °C | 40 |
| Max Temperature °F | 104 |
| Membrane Active Area m2 | 60 |
| Material housing | PVC |
| Material membrane | PES |
| Dimensions / Weights | |
| Diameter bores mm | 0.9 |
| Diameter fiber OD mm | 4 |
| Housing length mm | 1500 |
| Element length mm | 1682 |
| Feed OD inch | 2″ |
| Weight kg | 31.5 |
| Application | Clean water |
Features
A nominal pore size of 0.02 μm for optimal removal of particles, bacteria and viruses
Inside-out flow direction without air scouring
PES membrane fibers of 7 bores
Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
Advantages
Extremely high mechanical strength with no fiber breakage
High chemical tolerance
High-quality filtrate by reliable blocking of microorganisms and viruses
Minimum operating costs and efficient backwash
Economical equivalent module for direct replacement of Suez GE ZeeWeed ZW700B-8060 / UF10 / 7B / X / 0.8 / 40 plug-and-play
Applications
Surface water
Potable water
Sea water desalination
Pre-treatment of industrial water
Industrial wastewater
Municipal sewage
How it work?
The ZW 700B employs an innovative seven-channel hollow fiber ultrafiltration (UF) membrane module that achieves precision separation through absolute physical barrier mechanisms. Its multi-lumen design demonstrates 200% enhanced mechanical strength compared to conventional single-bore fibers, effectively eliminating operational risks associated with fiber breakage and ensuring long-term system stability.
