SHANGHAI CM UF-2880 Membrane (SFP-2880 Module)

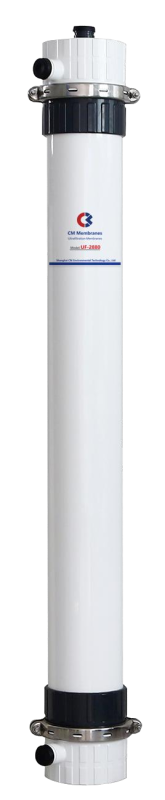

Shanghai CM UF-2880 Membrane

Ultrafiltration Membrane UF-2880 is a high-performance water treatment module crafted from premium PVDF (polyvinylidene fluoride) or PVC alloy material. With a filtration accuracy of 0.01 microns, it effectively retains bacteria, colloids, suspended solids, and macromolecular organic matter, ensuring stable output water quality. The membrane fibers feature high strength and strong antifouling properties, making them suitable for high-turbidity water sources. It operates with high flux and low transmembrane pressure difference, reducing energy consumption by over 20%. Compatible with frequent backwashing and chemical cleaning, it boasts a service life of 3-5 years. Its modular design enables easy installation and maintenance, and it is widely used in municipal water supply, industrial wastewater reuse, seawater desalination pretreatment, and other fields, making it an ideal choice for large-scale water treatment projects.

Product Specification — UF 2880(77) PVDF

Performance (for most feed waters)

Filtrate Flow	3-9 m²/h
Filtrate Turbidity	≤0.1 NTU
Filtrate SDI₁₅	≤3

Type Configuration: Capillary Ultra filtration Module

Membrane Polymer	PVDF
Nominal Membrane Area	77 m²
Nominal pore size	0.03 μm
Fiber Dimensions	ID 0.7 mm OD 1.3 mm
Diameter of cylinder part	Φ225m×2360mm

Application Date (for General use)

Typical Filtrate Flux Range	40-120 L/m²/h
Maximum Applied Feed Pressure	0.6 Mpa
Maximum Tran membrane Pressure	0.21 Mpa
Maximum Backwash Pressure	0.25 Mpa
Operating Temperature Range	5-45 °C
pH Operating Range	2-12
Operating Module	Outside to Inside Filtration

Typical Process Conditions

Backwash Flux	100-150 L/m²/h
Backwash Duration	30-60 seconds
Back Frequency	20-60 minutes

Why Chooese Shanghai CM

Resistant to strong acids, alkalis, and organic solvents, ideal for complex water environments (e.g., chemical wastewater treatment), with minimal corrosion or degradation during long-term operation.

Enhanced hydrophilicity through surface modification reduces pollutant adhesion and slows flux decline. Combined with backwashing, it extends cleaning intervals (reducing maintenance frequency by 30%).

Operates stably across a wide range (-40°C to 130°C), suitable for high-temperature industrial wastewater (e.g., power plant cooling water) or low-temperature environments.

Exceptional aging resistance ensures a lifespan of 5-8 years under normal conditions, with overall maintenance costs reduced by over 40% compared to traditional materials (e.g., PVC).

Uniform pore distribution and excellent water permeability enable low operating pressure (0.1–0.3 MPa), cutting energy use by 25%. Ideal for large-scale water treatment applications.

Superior mechanical properties and fiber toughness ensure pressure and impact resistance, preventing breakage caused by pressure fluctuations or particle scouring.

Application Fields of UF-2880

Water Treatment

Drinking Water Purification: Removes suspended solids, bacteria, viruses, and macromolecular organics to improve water quality.
Industrial Wastewater Treatment: Treats wastewater from electroplating, dyeing, and printing industries, while recovering valuable substances (e.g., heavy metals, dyes).
Seawater Desalination Pretreatment: Serves as a pre-treatment step for reverse osmosis (RO) to reduce membrane fouling.
Municipal Wastewater Reuse: Treats domestic sewage for irrigation or industrial cooling water.

Chemical & Electronics Industries

Ultrapure Water Production: Provides ultra-pure water for electronics manufacturing and pharmaceutical processes.
Chemical Separation: Recovers catalysts or isolates polymer compounds.
Electroplating Solution Recycling: Filters metal ions to extend solution lifespan.

Pharmaceuticals & Biotechnology

Protein Purification: Separates biomacromolecules like plasma proteins and monoclonal antibodies.
Vaccine Production: Concentrates viral particles or cell culture products.
Drug Purification: Removes small-molecule impurities to improve drug stability.
Blood Product Processing: Produces albumin, immunoglobulins, and other blood derivatives.

Healthcare

Hemodialysis: Assists in toxin removal from blood (combined with other technologies).
Bioproduct Preparation: Concentrates active components in cell cultures.

Food & Beverage Industry

Dairy Processing: Concentrates milk, separates whey protein, and removes fat.
Juice Clarification: Removes pectin and turbid substances to extend shelf life.
Beverage Refinement: Sterilizes and filters impurities in beer, wine, and other beverages.
Enzyme Recovery: Extracts enzymes from fermentation broths to enhance purity.

Environmental Protection & Resource Recovery

Oil-Water Separation: Treats oily wastewater (e.g., from petrochemical or machining industries).
Heavy Metal Recovery: Extracts metals like copper and nickel from industrial effluents.
Zero Liquid Discharge (ZLD): Achieves industrial wastewater recycling to minimize discharge.

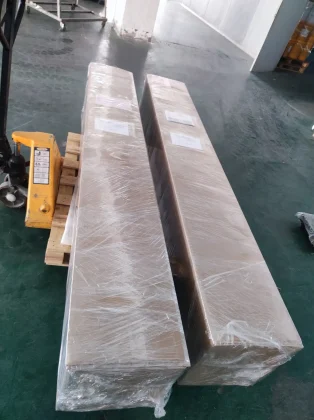

UF-2880 Package

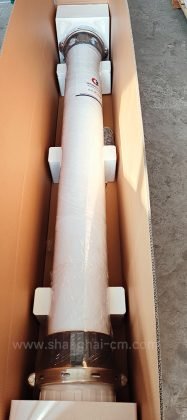

The inner layer is supported by high-density elastic foam, with the ends completely wrapped in foam. The outer carton is wrapped in a plastic film for waterproof treatment, and the outermost layer is protected by a wooden box, providing triple protection to ensure the product arrives safely in your hands.

Foam support

Foam wrap the ends

Film wrapping

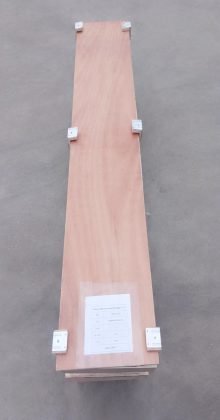

Wooden box protection

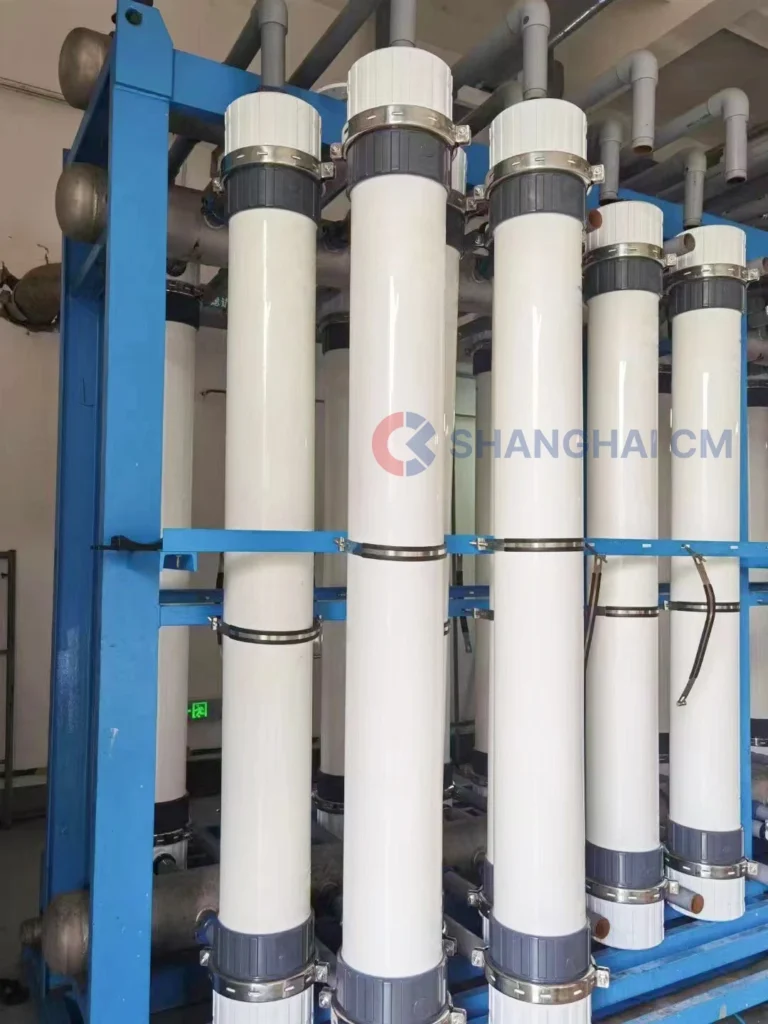

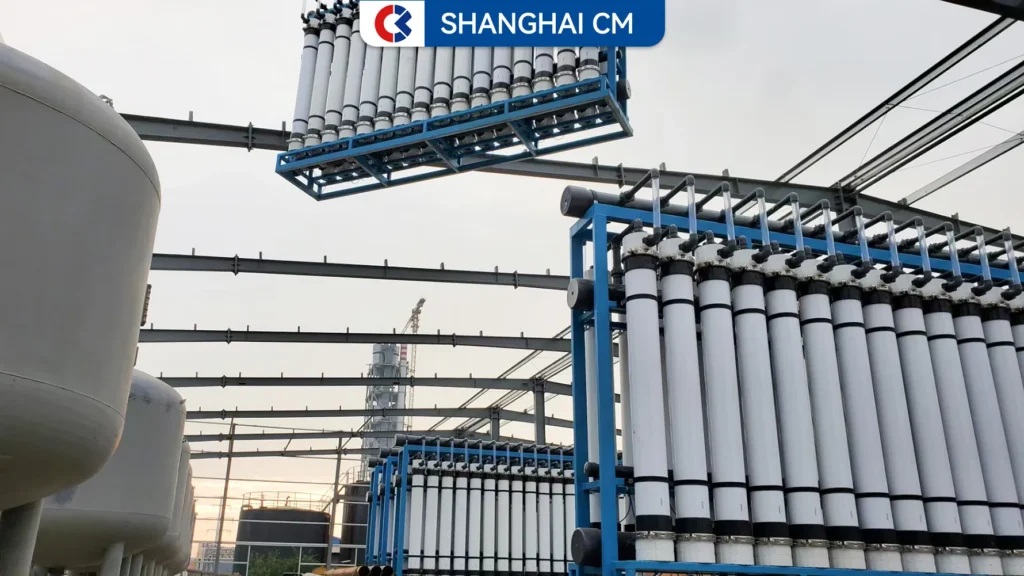

Ultrafiltration Membrane System Assemble

Every system is meticulously assembled and debugged to ensure that it operates without the need for adjustments upon reaching you.

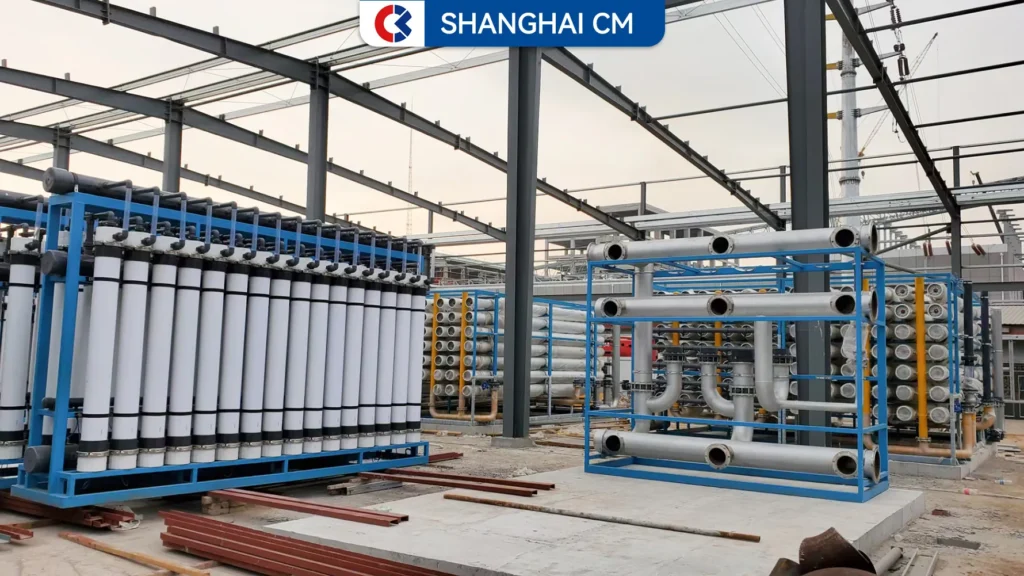

Application Case

The seawater desalination project utilizes 6 ultrafiltration membrane systems, with 32 ultrafiltration membranes in each system, resulting in a total of 192 ultrafiltration membranes for the entire project.

Frequently Asked Questions

Let your business have no worries !

How long is the delivery period?

No more than 20 pcs UF-2880, with a delivery time of approximately 15 days. For more than 20 pcs, please contact us to confirm the specific time.

Is there after-sales support?

We support pre-sales technical guidance, post-sales product usage maintenance, and troubleshooting.

What methods of payment can I use?

We can accept T/T, L/C, Western Union,Paypal, cryptocurrency and so on. For new customers, we only accept the 30% T/T of the payment, or if you have been with us for years and run into cash flow pressure, we do offer OA credit.

What is the minimum order quantity (MOQ)?

We support a minimum order of 1 pcs UF-2880

How can I be sure that my system can use your product

Please communicate the model or usage of the product you are currently using with us, as our UF2880 can replace the Dow SPF-2880.

Are you the manufacturer?

We are a manufacturer and trading company that can provide products other than ultrafiltration membranes

Can we have a video conference?

Of course, we can use Zoom and VooV Meeting for video conferencing

May I visit the factory?

Of course, please contact us to confirm the time and number of people before visiting, so that we can make arrangements in advance, and we also support video factory inspection
