ZeeWeed 500 Replacement Membrane
Technical & Cost Comparison for Retrofit Projects
Considering Replacing Your ZeeWeed 500?
Before you purchase OEM modules again, compare:
Quick Comparison Summary
Engineering-level performance metrics at a glance
| Key Factor | CM Replacement | ZeeWeed 500 |
|---|---|---|
| Retrofit Compatibility | 100% | Original |
| Capital Cost | ⭐ 30-50% Lower | High |
| Flux Stability | Equal or Higher | Stable |
| Delivery Time | 2-4 weeks | 8-16 weeks |
| OPEX | Lower | Higher |
| Maintenance Frequency | Lower | Standard |
Conclusion: Same system, lower lifecycle cost
Technical Deep Comparison
Engineering specifications and performance data
1 Membrane Material & Structure
| Item | CM | ZeeWeed 500 |
|---|---|---|
| Material | PVDF | PVDF |
| Fiber Type | Reinforced hollow fiber | Hollow fiber |
| Pore Size | 0.03-0.05 μm | ~0.035 μm |
| Hydrophilicity | Enhanced | Standard |
Engineering Conclusion:
- • Both use PVDF, but CM focuses on anti-fouling enhancement
- • Better long-term flux stability
2 Filtration Performance
| Parameter | CM | ZeeWeed 500 |
|---|---|---|
| Design Flux | 15-30 LMH | 15-25 LMH |
| Permeability | High | Standard |
| TMP Growth Rate | Slower | Normal |
Engineering Conclusion:
- • CM membranes typically show slower TMP increase
- • Longer stable operation cycle
3 Anti-Fouling & Cleaning
| Factor | CM | ZeeWeed 500 |
|---|---|---|
| Fouling Resistance | High | Standard |
| Cleaning Frequency | Lower | Higher |
| Chemical Resistance | Strong | Strong |
Engineering Conclusion:
Lower cleaning → lower chemical cost + less downtime
4 Mechanical Strength
| Factor | CM | ZeeWeed 500 |
|---|---|---|
| Fiber Strength | Reinforced | Standard |
| Breakage Risk | Lower | Medium |
| Lifetime | 3-8 years | 5-10 years |
Engineering Conclusion:
- • CM focuses on anti-breakage design
- • Especially useful in high MLSS systems
5 Installation & Retrofit
Full Compatibility with ZeeWeed 500
- Same cassette dimensions
- Same air scouring layout
- Same piping interface
No tank modification required
Lifecycle Cost Comparison
5-Year Total Cost of Ownership Analysis
| Cost Item | CM | ZeeWeed 500 |
|---|---|---|
| Initial Purchase | Low | High |
| Replacement Cost | Lower | Higher |
| Energy (Aeration) | Lower | Higher |
| Cleaning Chemicals | Lower | Higher |
| Total Cost | ⭐ Lower | High |
Engineering Conclusion:
Switching to CM can reduce total cost by 30-40% over 5 years
Engineered in Shanghai, Proven Worldwide
Our MBR systems installed in over 30 countries and regions worldwide
Specialized Production Facility
Our 5,000m² state-of-the-art manufacturing center in Jiangsu ensures precision engineering and quality control at every production stage.
Expert Quality Control Team
Our seasoned quality assurance specialists with 5+ years of experience rigorously inspect every component from manufacturing to final dispatch.
Global Service Network
With headquarters in Shanghai and strategic branch offices in São Paulo and Moscow, we provide responsive local support to clients worldwide.
Proven Business Success
With annual sales exceeding 5 million USD, our growth reflects the global trust in our technology and commitment to excellence.
Where CM Performs Better
Optimized for challenging industrial applications
High MLSS Wastewater
Superior mechanical strength handles high solids concentration without fiber breakage
Industrial Wastewater (Oil / Chemical)
Enhanced anti-fouling properties resist organic and chemical contaminants
Plants with Frequent Fouling Issues
Lower cleaning frequency reduces operational disruption and chemical costs
Projects with Tight OPEX Budget
Significant operating cost reduction through lower energy and chemical consumption
Is There Any Risk in Switching?
Common concerns addressed with engineering facts
Myth: Replacement membranes may not fit
Reality: Fully engineered for ZW500 compatibility with identical mounting dimensions
Myth: Performance may drop
Reality: Equal or higher flux in most cases, with slower TMP increase
Myth: Installation is complicated
Reality: Drop-in replacement with no system modifications required
Not Sure If It's ZW500?

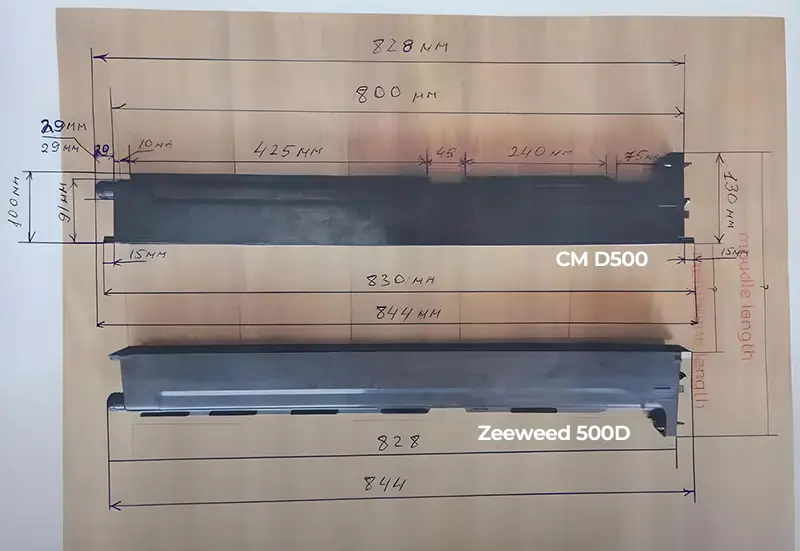

Measure your membrane according to the diagram to verify compatibility
Easy Verification Process
The CM D500 can serve as a 1:1 drop-in replacement for the Zeeweed 500D in terms of dimensions. Simply measure your existing membrane according to the specifications shown in the diagram.
- Check overall length and diameter measurements
- Verify connection port dimensions and spacing
- Confirm mounting bracket compatibility
CM Engineering Support
We provide more than membranes
Compatibility Verification
Complete dimensional and operational compatibility assessment
CAD Retrofit Drawings
Detailed technical drawings for seamless integration
Installation Guidance
Step-by-step installation support and documentation
Operation Optimization
Performance tuning and operational best practices
Tailored MBR Membrane Module Design
We understand that every MBR system is different -- and standard modules don't always fit perfectly. That's why we offer custom membrane module design based on your specific project requirements.
Engineering Flexibility for Your System
Whether you need to match an existing ZeeWeed 500 configuration or develop a completely new layout, our engineering team can tailor the solution to your system.
Custom Module Dimensions & Configurations
Adapt to any tank size, shape, or capacity requirement
Full CAD Drawings for Installation & Retrofit
Detailed technical documentation for seamless implementation
Structural Optimization Based on Tank Layout
Maximize efficiency with site-specific engineering
Seamless Integration with Existing Systems
Compatible with aeration and piping infrastructure
How to Get Started:
Simply provide your current drawings, dimensions, or operating data -- and we will deliver a fully engineered membrane module solution ready for implementation.

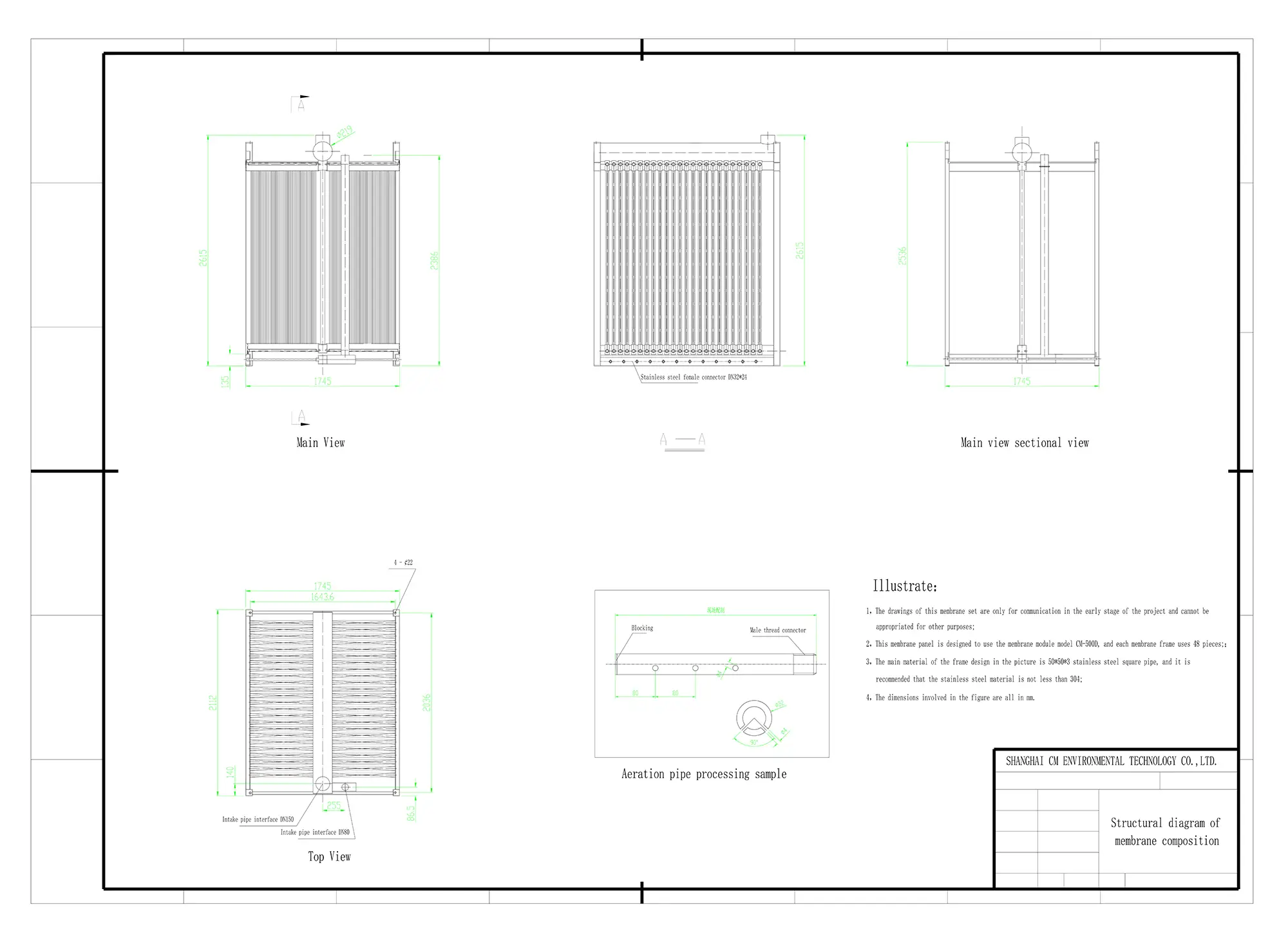

ZeeWeed 500D Module Configuration
High-density hollow fiber membrane assembly

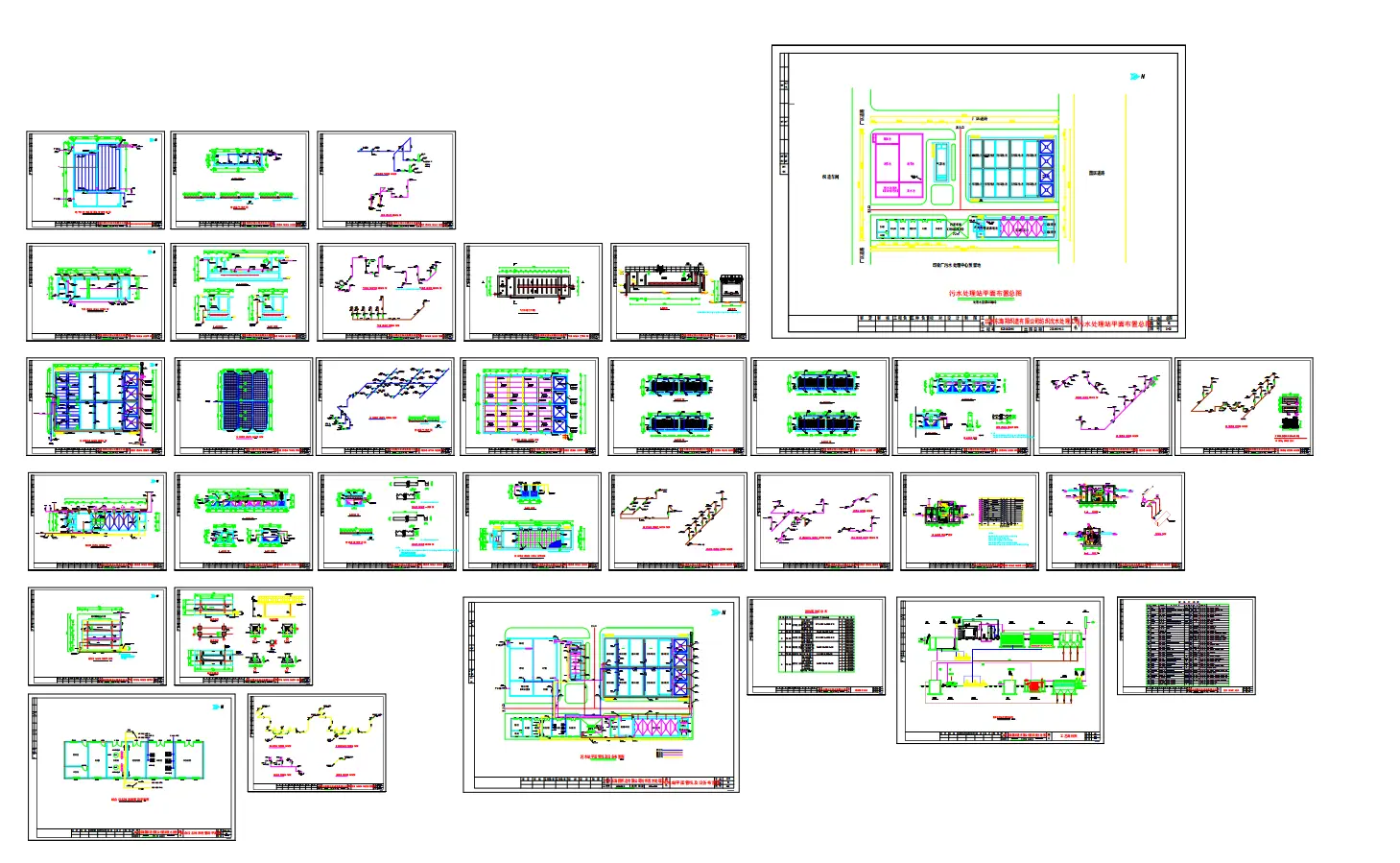

Process Construction Drawing
CAD-ready technical specifications for installation
Ready to Design Your Custom Module?
Our engineering team is standing by to review your requirements and deliver a tailored solution.
MBR Membrane Production Process
Our state-of-the-art facility features 3 production lines, each capable of producing 3,000 square meters of membrane modules daily with simultaneous manufacturing capabilities for different specifications.
PVDF Raw Materials
The PVDF raw material has been repeatedly tested and has excellent hydrophilicity, ensuring the highest quality foundation for our membrane modules.
Advanced NIPS Technology
Our Non-solvent Induced Phase Separation (NIPS) technology ensures uniform film texture, stable performance, and high tensile strength for all our membrane products.
Hollow Fiber Drying
The drying process stabilizes the membrane pore structure, making the filtration performance more precise, enhancing the material's internal structure stability and mechanical strength.
Batch Glue Filling
In a controlled constant temperature and humidity environment, our batch filling process helps to ensure stable and consistent product quality across all production runs.

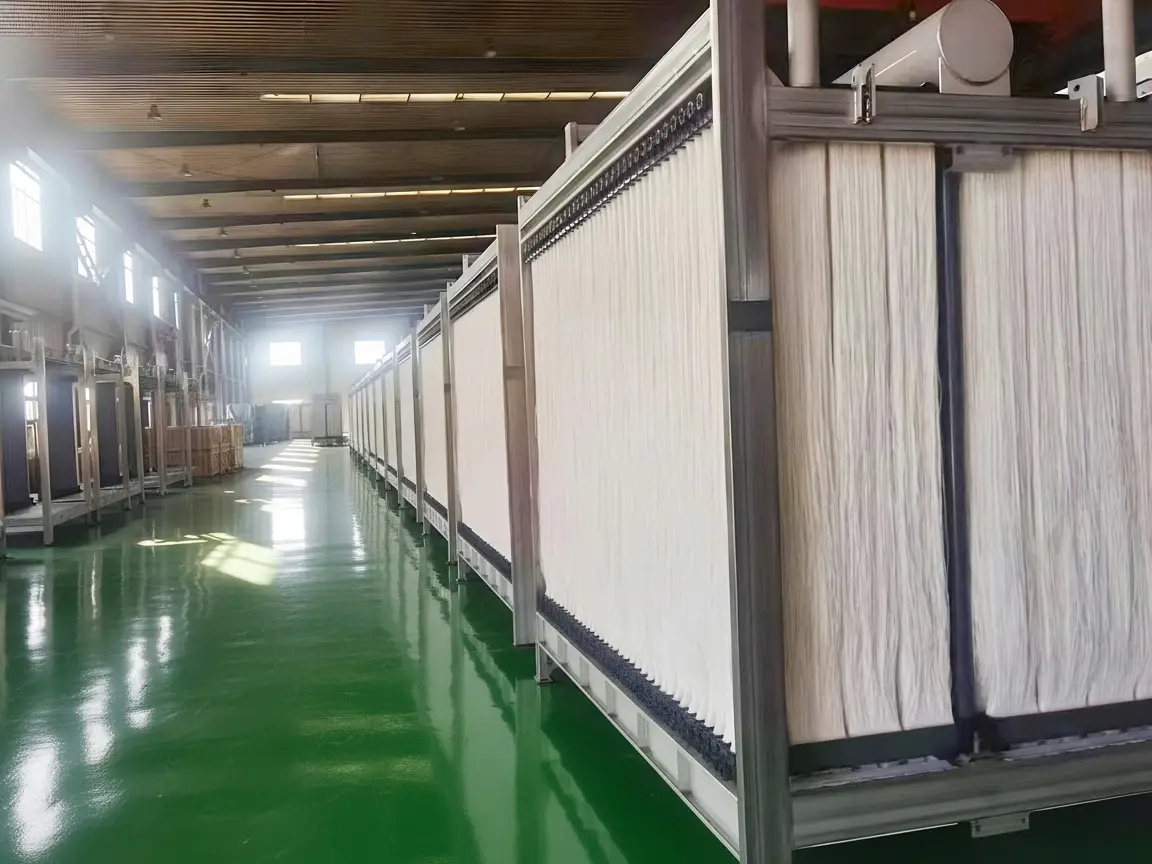

Production Completed
The finished MBR membrane modules are protected with transparent films and prepared for packaging. Each module undergoes rigorous quality control before being shipped to our customers.
Package & Shipping
We ensure your MBR membranes arrive in perfect condition with our professional packaging and reliable shipping solutions.
Professional Packaging
-
Each membrane is protected by high-density foam padding
-
Both ends are securely fixed to prevent collisions during transportation
-
Sturdy wooden boxes provide complete protection for every membrane
-
Each package includes a detailed quality inspection certificate
Global Shipping Network
With our headquarters in Shanghai and branch offices in São Paulo and Moscow, we've established an efficient global shipping network that ensures timely delivery to over 30 countries worldwide.
Our Packaging & Shipping Process
Foam protection for membranes
End fixation to prevent damage
Sturdy wooden box protection
Quality inspection before shipping
Careful loading for transport
Global shipping solutions
Proven Industrial Solutions
Real-world implementations delivering measurable results in municipal and industrial wastewater treatment.
ZeeWeed 500 Replacement Project
Municipal WWTP Upgrade
A municipal wastewater treatment plant in Poland upgraded its existing MBR system originally equipped with ZeeWeed 500 modules due to rising operating costs and extended delivery times for OEM replacements.
Project Overview
- Application: Municipal wastewater treatment
- Location: Jiangsu, China
- Project Time: Completed in May 2023
- Treatment Capacity: 18,000 m³/day
- Membrane Modules Installed: 1,080 units
Challenge
- High replacement cost from OEM supplier
- Membrane fouling leading to flux decline
- Increasing cleaning frequency
Solution
We provided fully compatible hollow fiber MBR membrane modules, designed as direct replacements for ZW500 cassettes. Custom CAD drawings were delivered to ensure precise installation without any tank modification.
Results
- ✓Reduced membrane replacement cost by 38%
- ✓Improved flux stability
- ✓Decreased cleaning frequency by 25%
- ✓Project completed with zero system downtime during installation phase

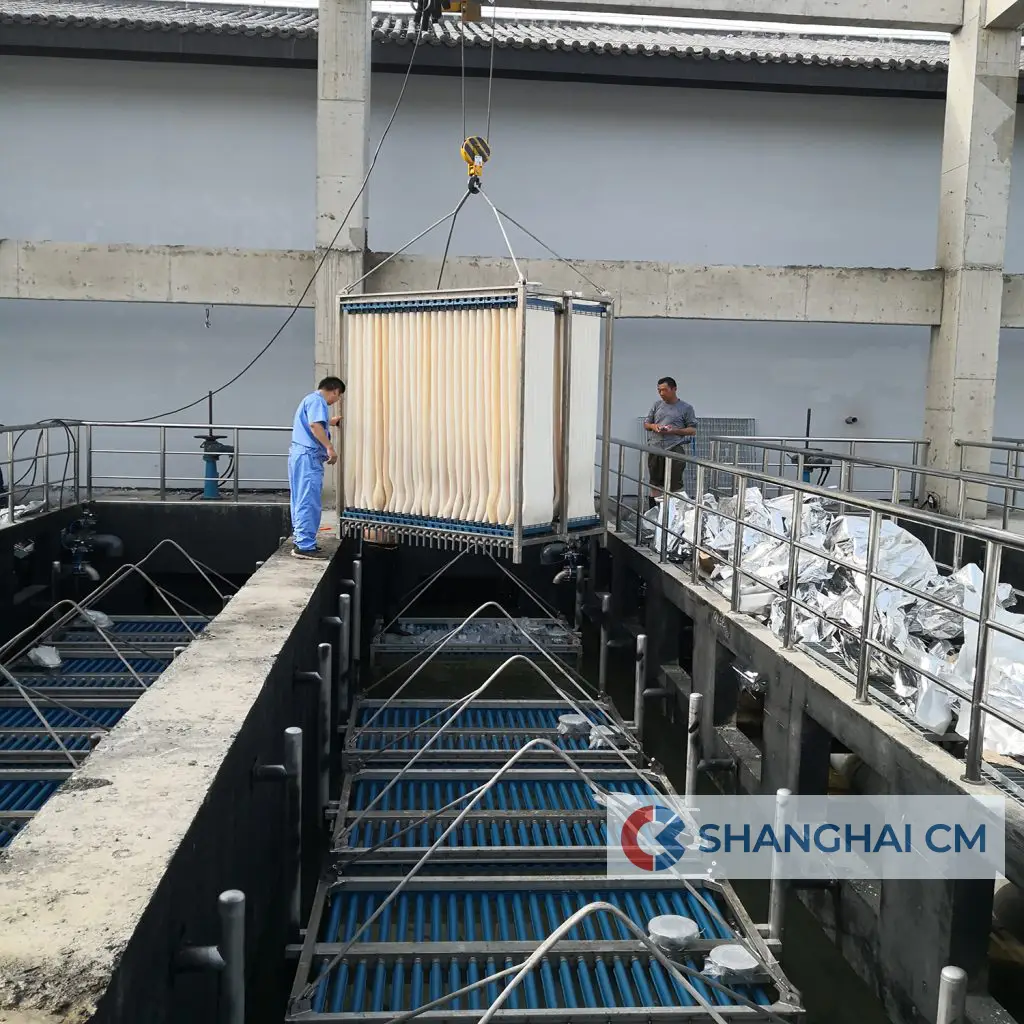

MBR Module Installation -- Warsaw WWTP

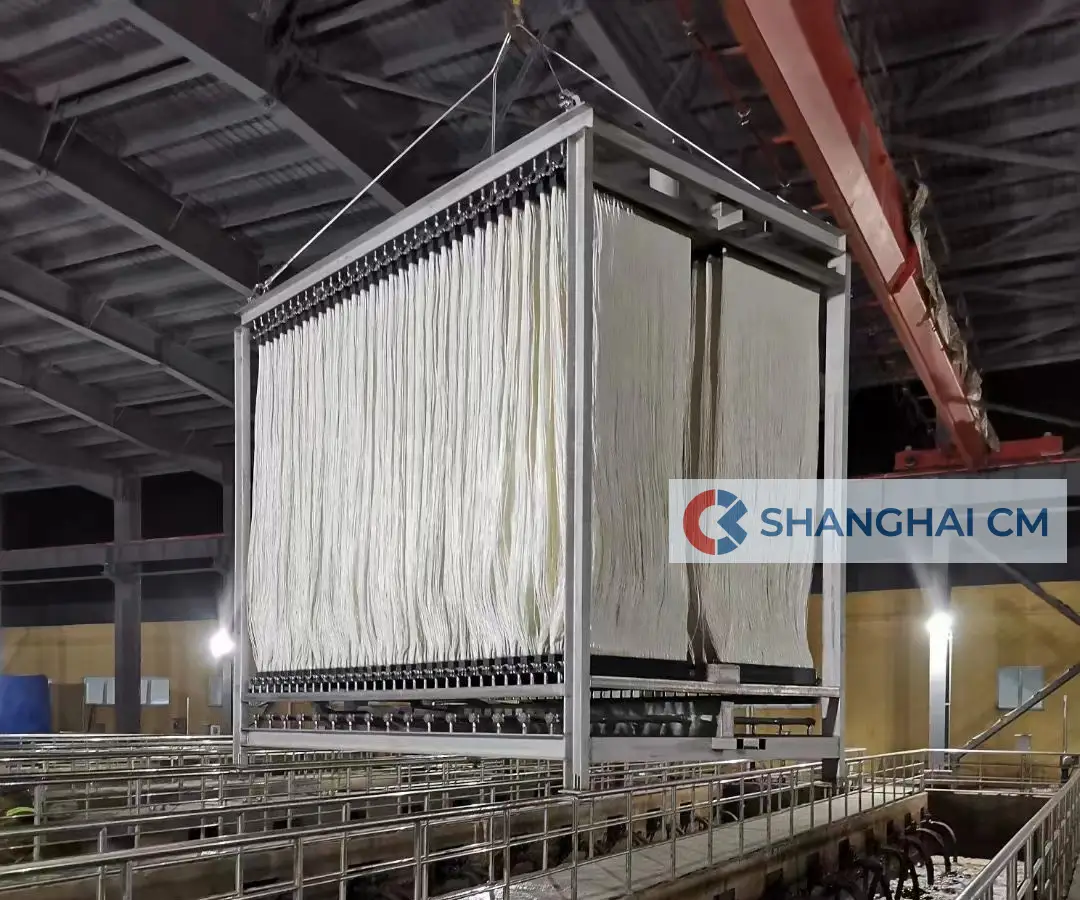

High-Load Industrial MBR -- Chemical Plant
MBR Retrofit for High-Load Industrial Wastewater
Chemical Manufacturing Plant
A large-scale chemical manufacturing plant in Turkey required a reliable membrane replacement solution for its high-load MBR system, originally using imported hollow fiber modules.
Project Overview
- Application: Industrial wastewater (chemical industry)
- Location: Izmir, Turkey
- Project Time: Completed in September 2024
- Treatment Capacity: 9,500 m³/day
- Membrane Modules Installed: 640 units
Challenge
- Severe membrane fouling due to high COD and oil content
- Frequent fiber breakage in original modules
- High OPEX caused by intensive aeration and cleaning
Solution
We designed a reinforced PVDF hollow fiber membrane module, optimized for high MLSS and industrial conditions. The module structure was customized, and full CAD installation drawings were provided to match the existing tank layout.
Results
- ✓Reduced aeration demand by 20%
- ✓Significantly improved anti-fouling performance
- ✓Lower membrane breakage rate
- ✓Stable long-term operation under high-load conditions
Engineering-Level FAQ
Technical questions answered
Q1: Can CM membrane fully replace ZeeWeed 500?
Yes, designed for direct retrofit with identical cassette dimensions, air scouring layout, and piping interfaces.
Q2: Will operating parameters change?
No major changes required. You can maintain your existing flux rates and TMP settings. Minor optimization may improve performance.
Q3: Is aeration system compatible?
Yes, same air scouring logic and diffuser placement. Your existing blower system works without modification.
Q4: What about warranty?
We provide performance-based warranty covering flux stability, mechanical integrity, and chemical resistance. Terms customized to your application.
Q5: Do you support large retrofit projects?
Yes, including municipal-scale plants. We provide phased replacement strategies to minimize downtime and ensure continuous operation.
