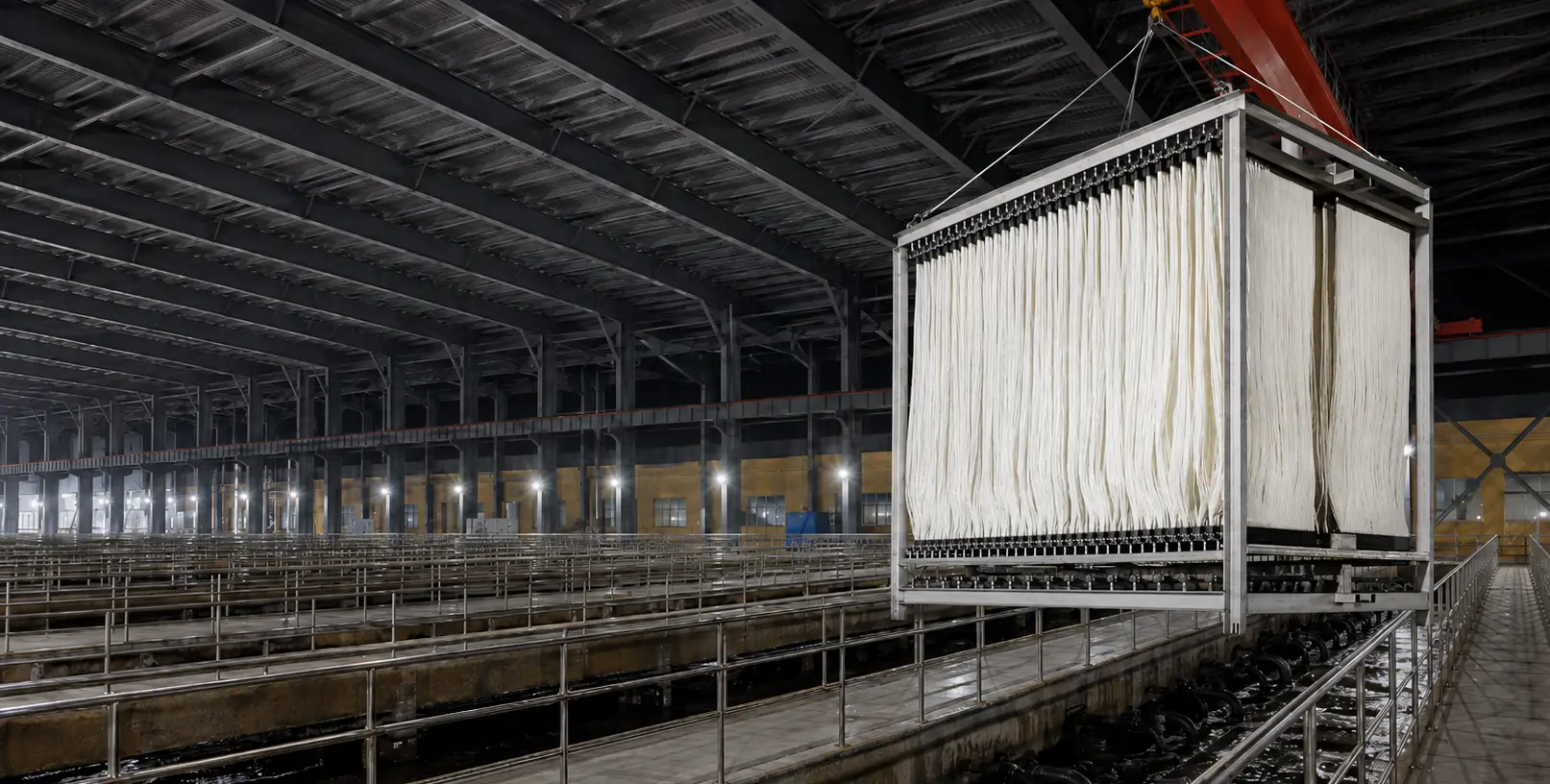

Hollow Fiber MBR Membrane for Wastewater Treatment
PVDF submerged MBR membrane modules for new wastewater treatment plants, membrane replacement and water reuse projects.
New MBR Projects & Replacement
Custom Membrane Module & Rack Configuration
Industrial & Municipal Wastewater Applications
What Do You Need for Your MBR Project?
Select the service that matches your current requirements
New MBR Project
Need membrane selection for a new wastewater treatment plant? We help with membrane area, module quantity and rack configuration.
MBR Replacement
Replacing existing MBR membranes? Send the brand, model, dimensions or photos for compatibility evaluation.
Membrane Purchase
Already know your specifications? Send membrane area, module size and quantity for quotation.
Not sure which option fits your needs? Our engineers provide free consultation to help you choose the right solution -- just describe your current situation and we'll guide you through the best approach.
Microfiltration MBR Specifications
| Model | Membrane Surface Area (m²) | Fiber Material | Fiber Pore Size (μm) | Dimensions (mm) | ||
|---|---|---|---|---|---|---|
| Height A |
Length B |
Width C |
||||
| CM‑057 | 5.7 | Reinforced Polyvinylidene Fluoride (RPVDF) |
0.1 | 1,125 | 480 | 30 |
| CM‑071 | 7.1 | 1,125 | 680 | 30 | ||
| CM‑097 | 9.7 | 1,300 | 680 | 30 | ||
| CM‑113 | 11.3 | 1,500 | 680 | 30 | ||
| CM‑193 | 19.3 | 1,300 | 1,250 | 30 | ||
| CM‑227 | 22.7 | 1,500 | 1,250 | 30 | ||
| CM‑313 | 31.3 | 2,000 | 1,250 | 30 | ||
Ultrafiltration MBR Specifications
| Model | Membrane Surface Area (m²) | Fiber Material | Fiber Pore Size (μm) | Dimensions (mm) | ||
|---|---|---|---|---|---|---|
| Height A |
Length B |
Width C |
||||
| CM‑060 | 6 | Reinforced Polyvinylidene Fluoride (RPVDF) |
0.03 | 1,125 | 480 | 30 |
| CM‑088 | 8.8 | 1,125 | 680 | 30 | ||
| CM‑120 | 12 | 1,300 | 680 | 30 | ||
| CM‑140 | 14 | 1,500 | 680 | 30 | ||
| CM‑238 | 23.8 | 1,300 | 1,250 | 30 | ||
| CM‑282 | 28.2 | 1,500 | 1,250 | 30 | ||
| CM‑388 | 38.8 | 2,000 | 1,250 | 30 | ||
MBR Applications in Wastewater Treatment
Proven membrane bioreactor solutions across diverse industrial and municipal sectors.
Industrial Wastewater
Chemical manufacturing and high-strength industrial effluent treatment
Municipal Sewage
Large-scale urban wastewater treatment for communities

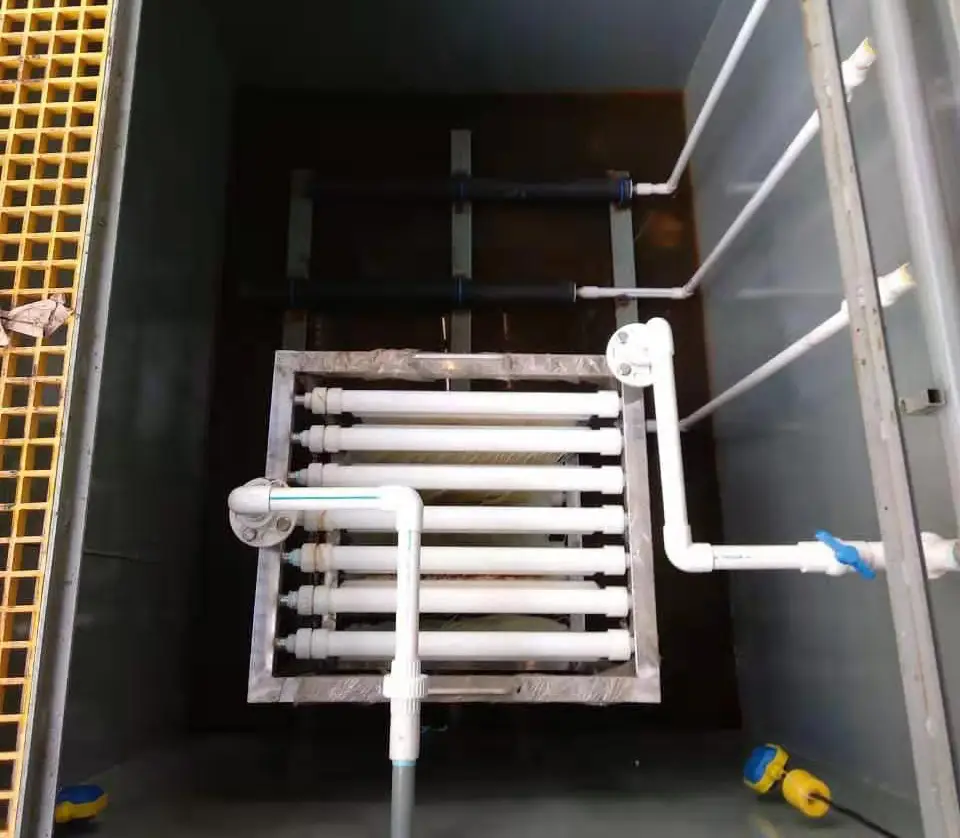

Food & Beverage
Processing wastewater with high organic loads

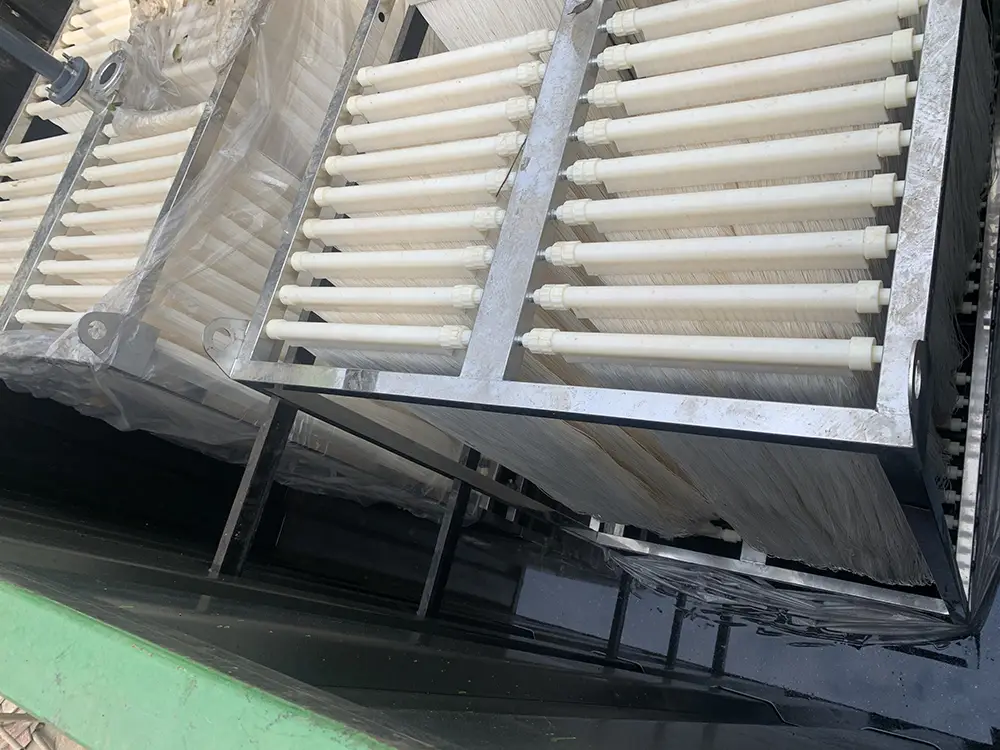

Chemical Wastewater
Complex industrial effluent requiring advanced treatment
Hotel & Residential
Compact systems for hospitality and residential complexes

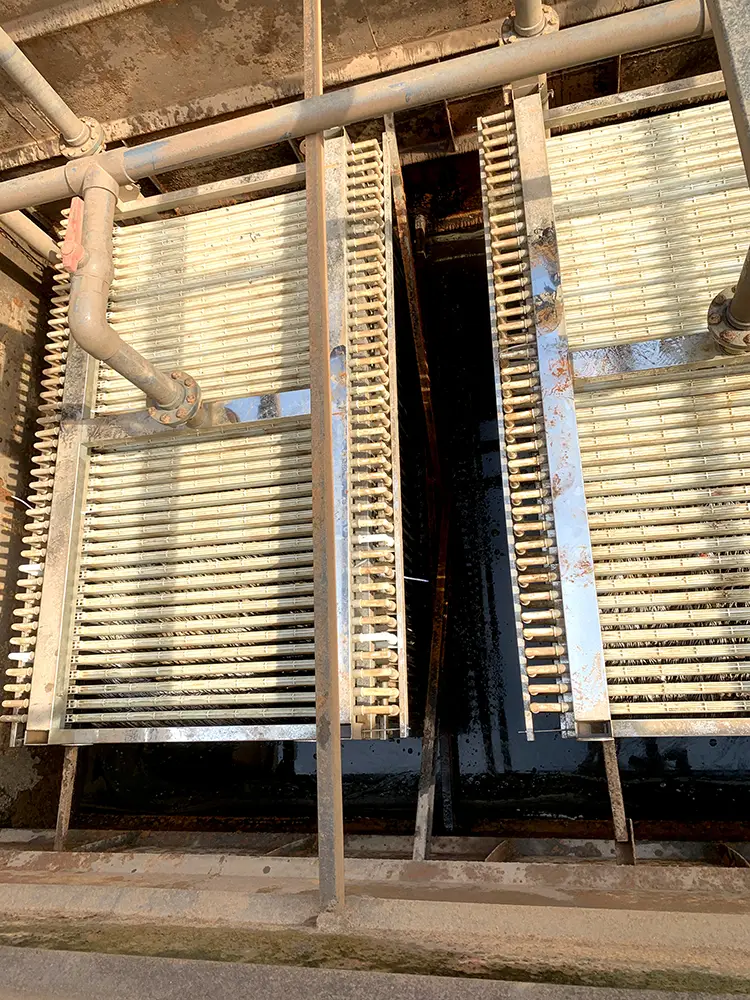

Water Reuse
Recycling treated water for irrigation and industrial processes
Hollow Fiber MBR Manufacturing
Hollow Fiber Production

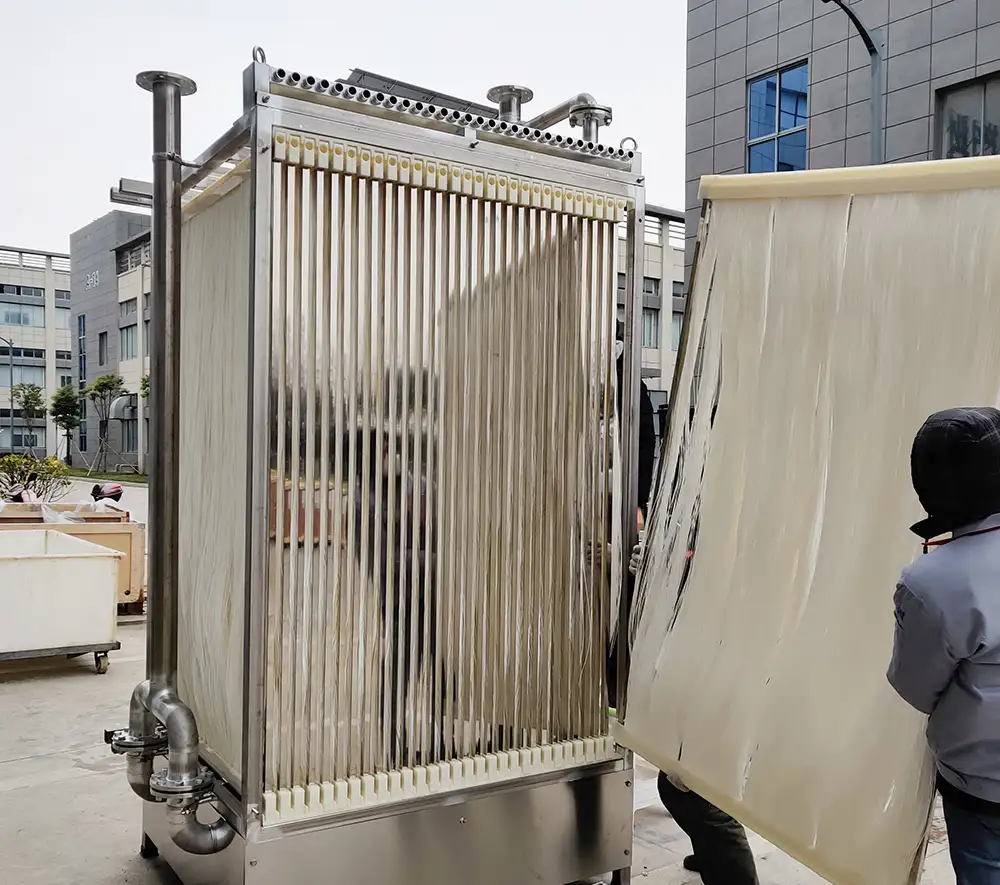

Module Assembly

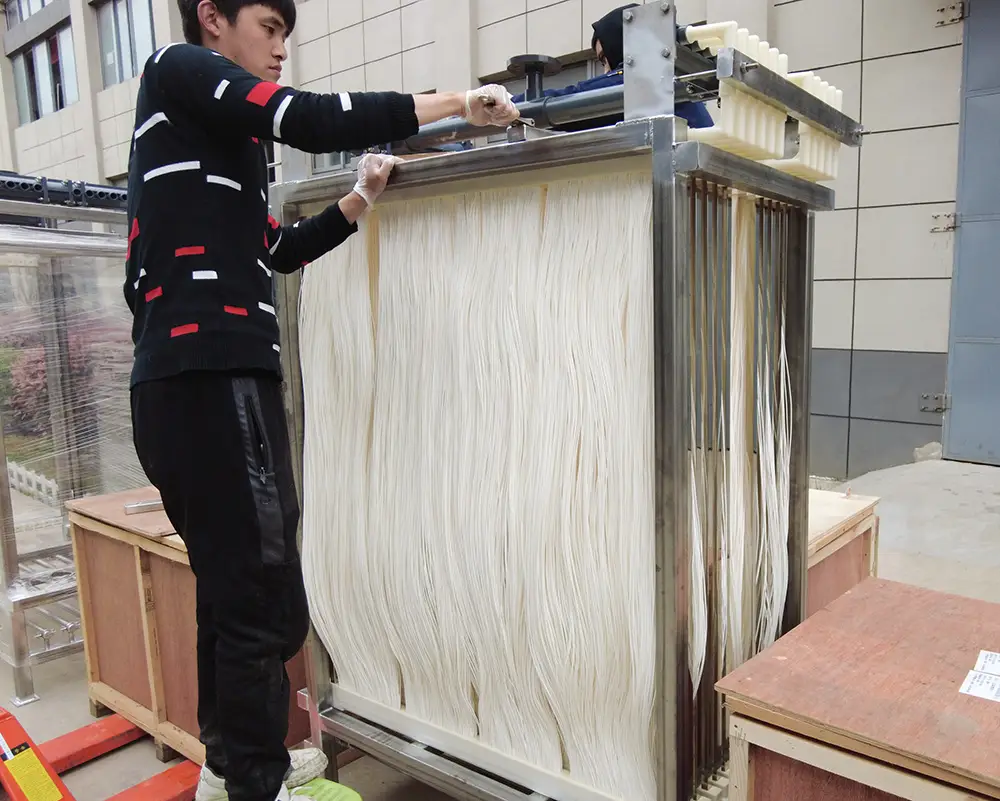

Final Inspection
From PVDF hollow fiber production to membrane module assembly and final inspection, CM controls the key manufacturing processes in-house.
2,000 T/D Beverage Wastewater Treatment Project
A customized hollow fiber MBR system designed for stable beverage wastewater treatment and water reuse, including reliable operation under Mongolia's extreme winter conditions.
Project Solution
Hollow Fiber MBRHigh-Performance MBR Membranes
5,000 m² membrane area for biological treatment and efficient solid-liquid separation.
Cold-Climate Design
Optimized configuration for dependable operation during Mongolia's severe winter.
Treated Water Reuse
Effluent designed for reuse in plant greening, cleaning and other non-potable applications.

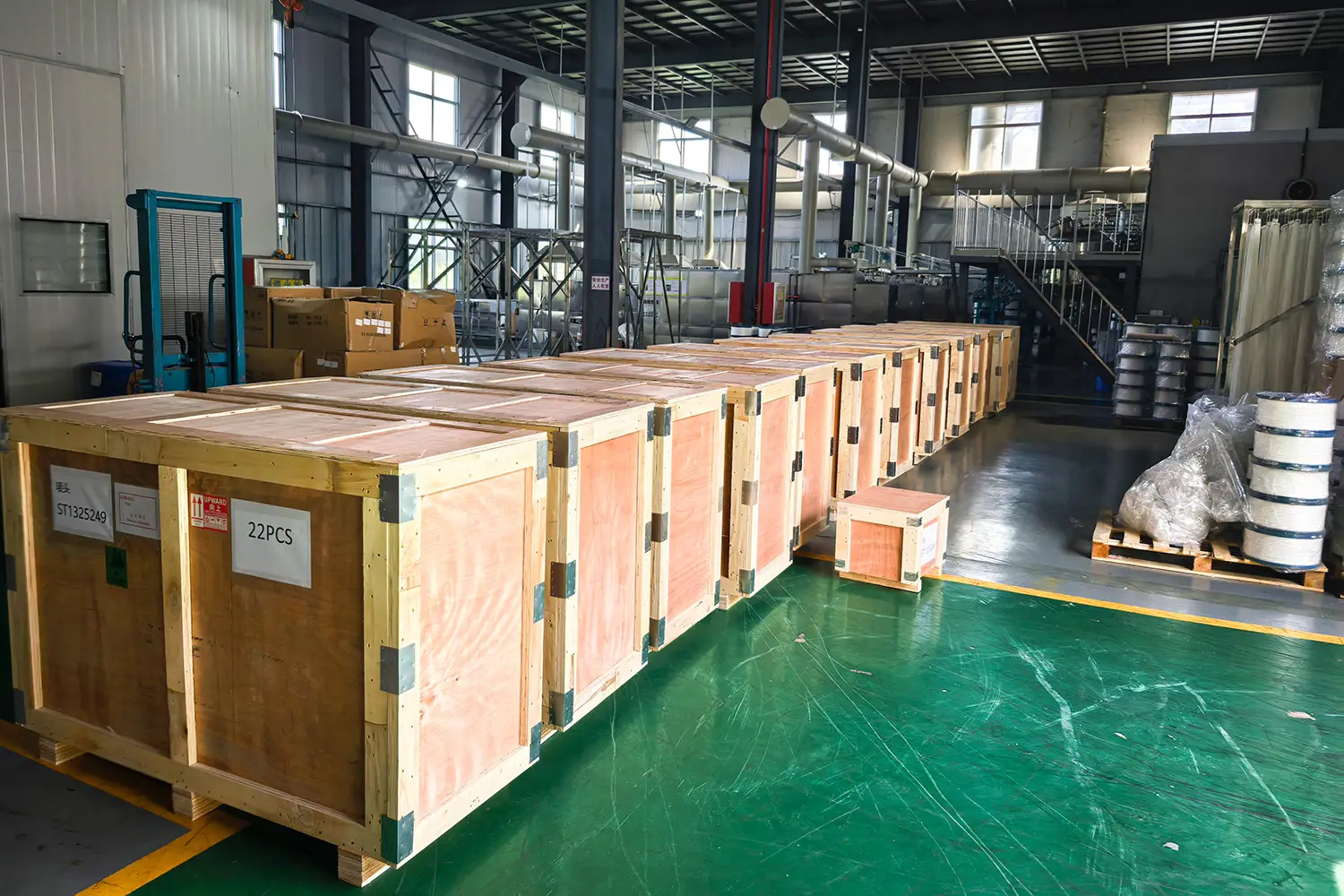

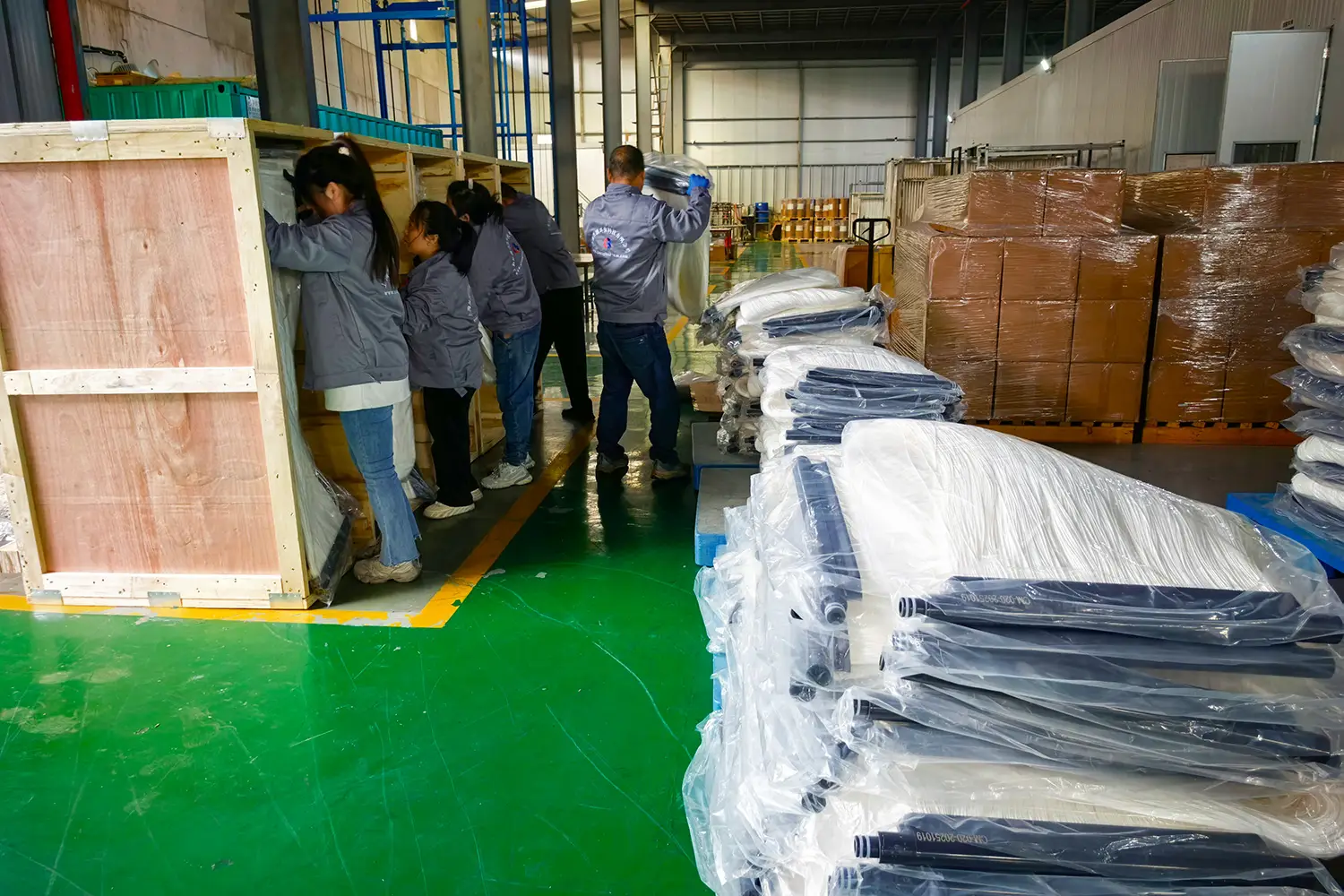

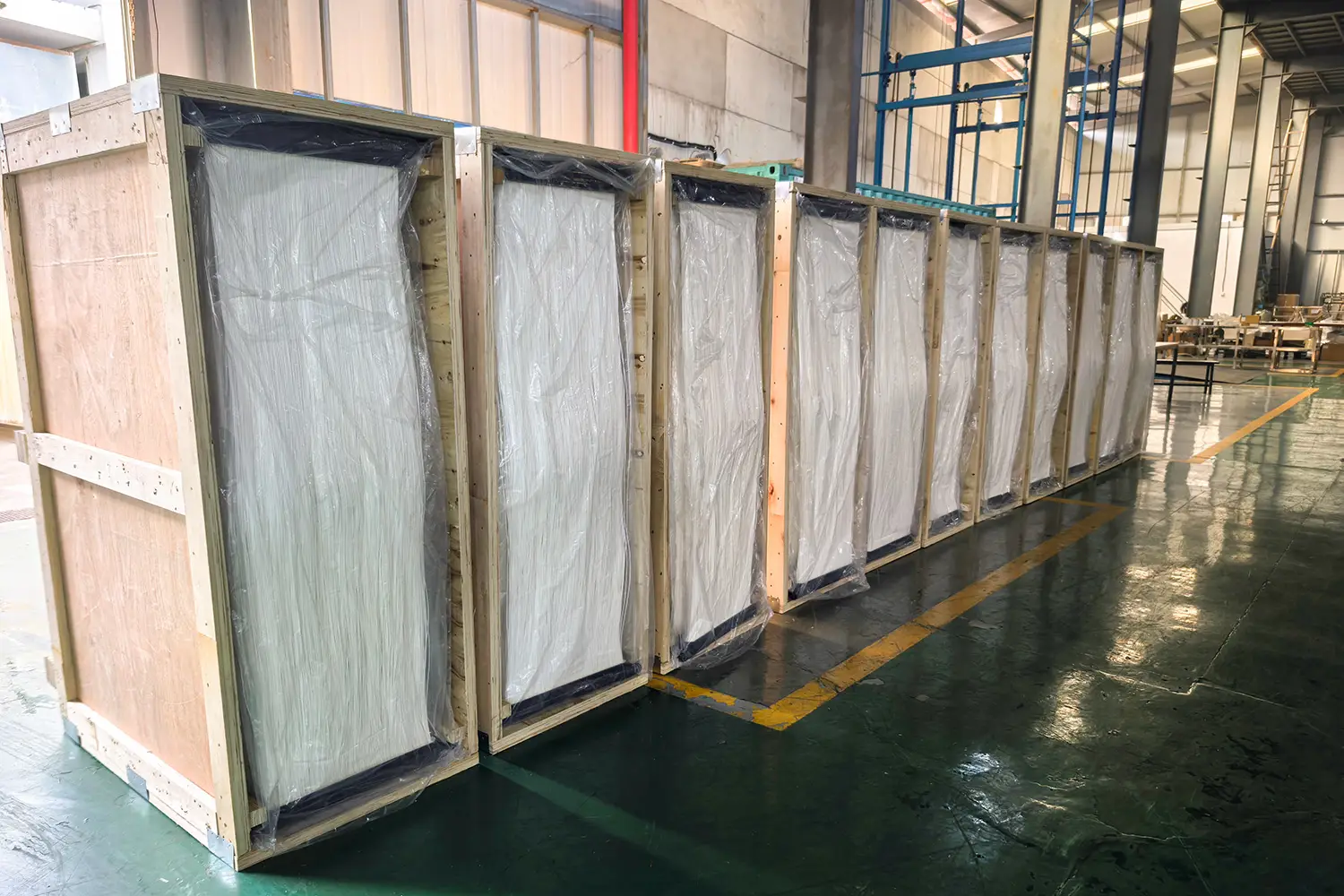

Package & Shipping
We ensure your MBR membranes arrive in perfect condition with our professional packaging and reliable shipping solutions.
Each one is carefully checked before packing
Internal fixation
Global shipping solutions
Our Happy Clients From 30+ Countries
Trusted by businesses worldwide, our products and services have made a significant impact across diverse markets.
"I have been working with CM for 3 years and I am glad that I chose them from the beginning. Their product quality is very high and my customers have never complained about their products. Shanghai CM, as a professional manufacturer, has always provided us with professional technical support. At the same time, they also responded to all our technical issues in a timely manner, ensuring that my customers can get the equipment running smoothly."
Abdulla Bal
From Kazakhstan
"We met at the Shanghai Water Treatment Exhibition. My colleagues and I visited their factory in person and were impressed by their advanced equipment. As a replacement project, the 500D membrane module provided by Shanghai Chenmo ran perfectly in the original system, which was great."
Giovamny Bernard
From Dominican Republic
"During the entire purchase process, CM made me feel very safe. Their sales staff were very professional. Thank you for providing me with a design plan, which enabled our sewage treatment plant project to be implemented quickly. Now the entire sewage treatment plant project is running stably, and everything looks very good."
Dmitry Mileshkin
From Russia
Get Expert Water Treatment Solutions
Our technical team will respond within 24 hours with a customized proposal
Contact Information
Technical Sales Manager
Phone / WhatsApp
Response within 24h
Minhang District, Shanghai, China
Why Choose Shanghai CM?
- 15+ years specialized in membrane technology
- Custom solutions for petrochemical industry
- Comprehensive after-sales support
