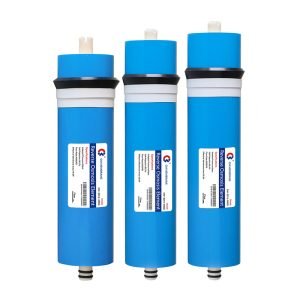

Domestic RO Membranes

We are manufacturer and exporter of a huge range of domestic ro membranes with affordable price all over the world.

Advanced Technology & Experience

CM household reverse osmosis membrane element uses the world's most advanced household polyamide composite reverse osmosis membrane, combined with the experience accumulated by Murui Environmental Protection Technology Co., Ltd. in the rolling process of reverse osmosis membrane elements for many years.

Outstanding Performance

High stability and excellent cost performance

Complete Product Range

Five diameters: 1.8, 2.0, 2.8, 3.0, 3.2 inches

Product Specifications

Model Effective Membrane Area ft²(m²) Operating Pressure psi(Mpa) Average Water Production GPD(m³/d) Desalination Rate % Recovery Rate %
CM-1812-50 4(0.4) 65(0.45) 50(0.19) 97 15
CM-2012-75 4(0.4) 65(0.45) 75(0.28) 97 15
CM-2012-100 5(0.5) 65(0.45) 100(0.38) 97 15
CM-2812-200 10(1.0) 65(0.45) 200(0.76) 97 15
CM-3012-300 13(1.2) 65(0.45) 300(1.1) 97 15
CM-3013-400 15(1.4) 65(0.45) 400(1.5) 97 15
CM-3213-600 20.5(1.9) 65(0.45) 600(2.2) 97 15
CM-3213-800 26(2.5) 65(0.45) 800(3.0) 97 15

Test Method

  • Water temperature is 25℃, NaCl concentration is 500mg/L, pH value is 7.5
  • Water production volume within ±15% of average
  • Minimum desalination rate is 95.0%

Extreme Usage Conditions

Max Operating Pressure: 300psi(2.0Mpa)
Max Inlet Temperature: 45℃
Max Water Inflow SDI: 5
Free Chlorine: <0.1mg/L
pH Range (Operation): 3-10
pH Range (Cleaning): 2-11
