What You'll Learn in This Guide
- What an industrial RO system is
- How an RO system works
- Key components of an RO system
- Industrial RO system design considerations
- RO system cost and optimization
- Common problems and solutions
This guide is designed for engineers, plant managers, and procurement professionals looking for reliable RO water treatment system solutions.

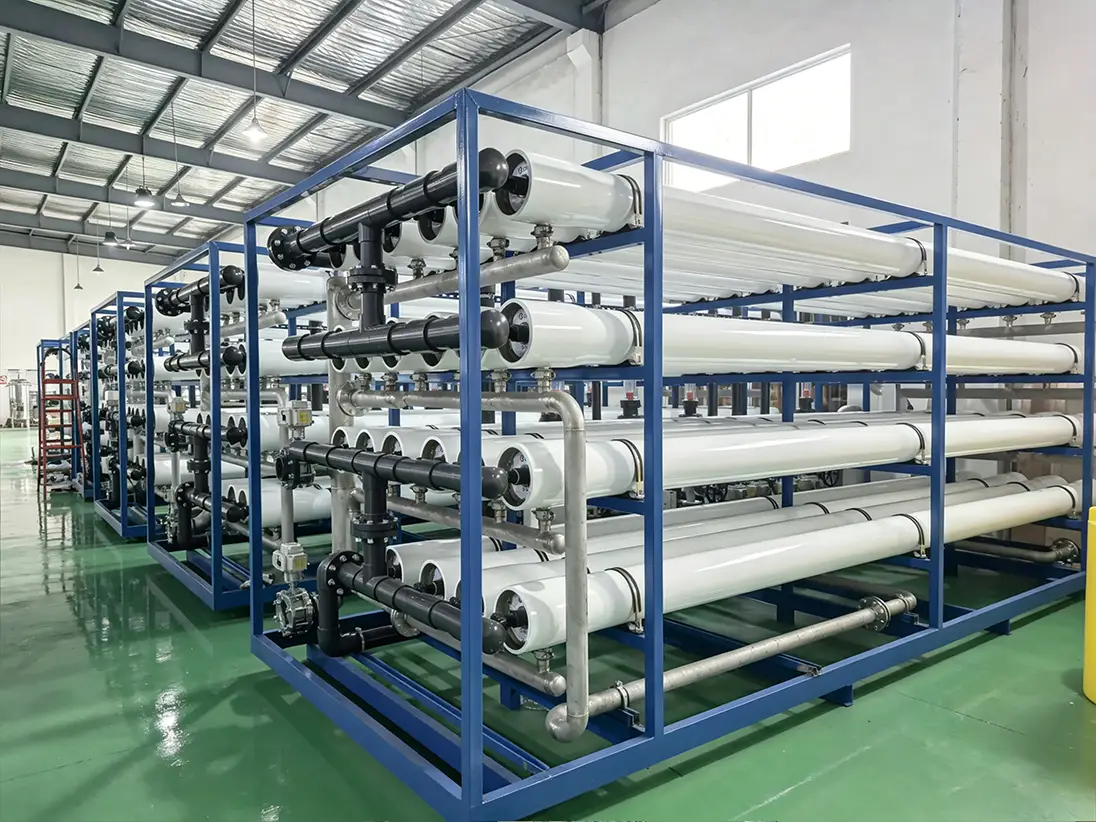

What is an Industrial RO System?
An industrial reverse osmosis system is a pressure-driven water treatment system that uses semi-permeable membranes to remove impurities from water.
Compared with residential systems, an industrial RO system is designed for:
- Large-scale water treatment (500 LPH to 1000+ m³/day)
- Continuous operation (24/7 industrial use)
- Complex feed water conditions (high TDS, wastewater, seawater)
Common Applications
The RO water treatment system is widely used in:
- Boiler feed water systems
- Industrial process water
- Wastewater reuse and recycling
- Seawater desalination plants
Because of its high efficiency and reliability, the reverse osmosis system has become the core technology in industrial water treatment.
How Does an Industrial RO System Work?
The working principle of an industrial RO system is based on reverse osmosis, where pressure is applied to overcome osmotic pressure and force water through a membrane.

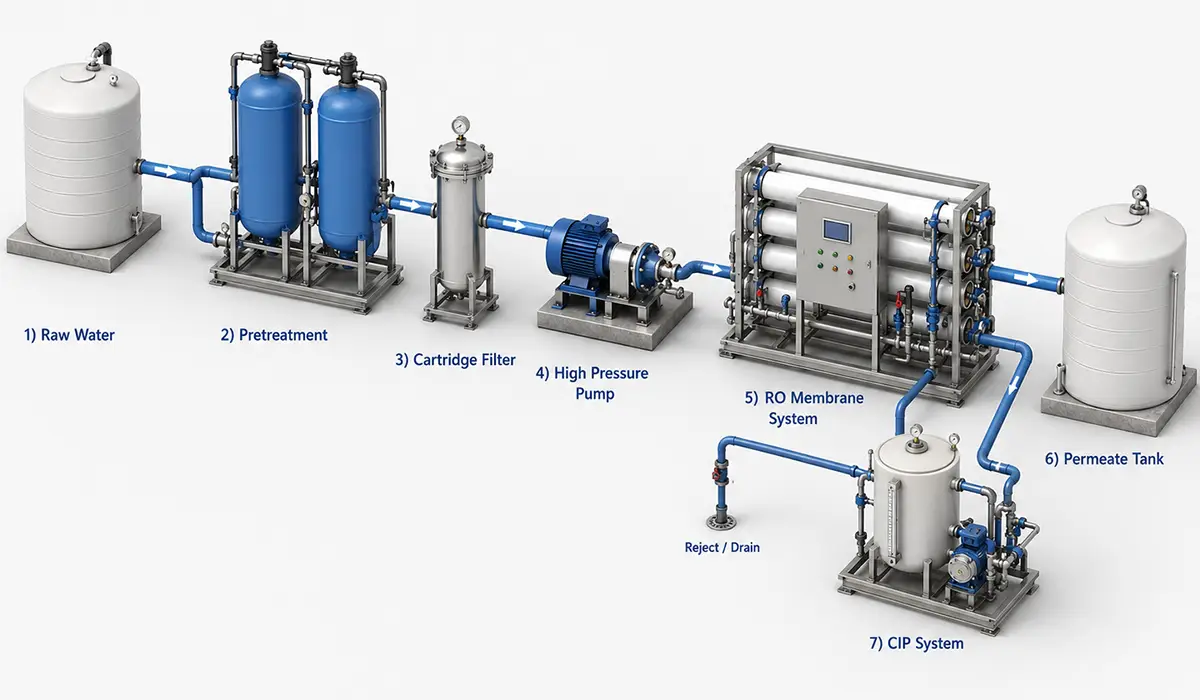

Step-by-Step Process:
-
1
Pretreatment Removes suspended solids, chlorine, and organics to protect the RO membrane
-
2
High-Pressure Pump Provides the pressure required for membrane separation
-
3
RO Membrane Separation Allows water molecules to pass while rejecting salts, bacteria, and contaminants
-
4
Permeate Water Output Purified water collected for use
-
5
Concentrate Discharge Waste stream carrying rejected contaminants
The efficiency of an industrial reverse osmosis system depends on pressure, membrane quality, and feed water conditions.
Key Components of an Industrial RO System
A high-performance RO water treatment system consists of several critical components:
1. Pretreatment System
Pretreatment is essential for protecting the RO membrane and ensuring long-term stability.
- Multimedia (sand) filter
- Activated carbon filter
- Ultrafiltration (UF) system
- Chemical dosing (antiscalant, biocide)
Without proper pretreatment, membrane fouling and scaling will significantly reduce efficiency.
2. High-Pressure Pump
The high-pressure pump is the driving force of the reverse osmosis system.
- Determines system pressure
- Directly affects energy consumption
- Must be selected based on feed water salinity
3. RO Membrane
The RO membrane is the core component of the industrial RO system.
Key performance indicators:
- Salt rejection rate (typically 99%+)
- Water flux
- Fouling resistance
4. Control System (PLC)
Modern industrial RO systems are equipped with:
- PLC automatic control
- Pressure and flow sensors
- Real-time monitoring
This ensures stable and efficient system operation.
5. CIP Cleaning System
The Cleaning-In-Place (CIP) system is critical for maintenance.
Removes fouling and scaling
Clears accumulated contaminants
Restores membrane performance
Brings back original efficiency
Extends system lifespan
Reduces replacement frequency
Regular cleaning ensures optimal operation of the RO water treatment system.
Types of Industrial RO Systems
Industrial RO systems can be classified based on different criteria:
1 By Feed Water Type
Brackish Water RO System (BWRO)
For low to medium salinity water sources
Seawater RO System (SWRO)
For high salinity seawater desalination
2 By Capacity
Small Systems
≤1 m³/h
Laboratory & pilot applications
Medium Systems
1-50 m³/h
Most industrial applications
Large Systems
>50 m³/h
Municipal & large industrial plants
3 By Design Structure
- Skid-mounted RO system

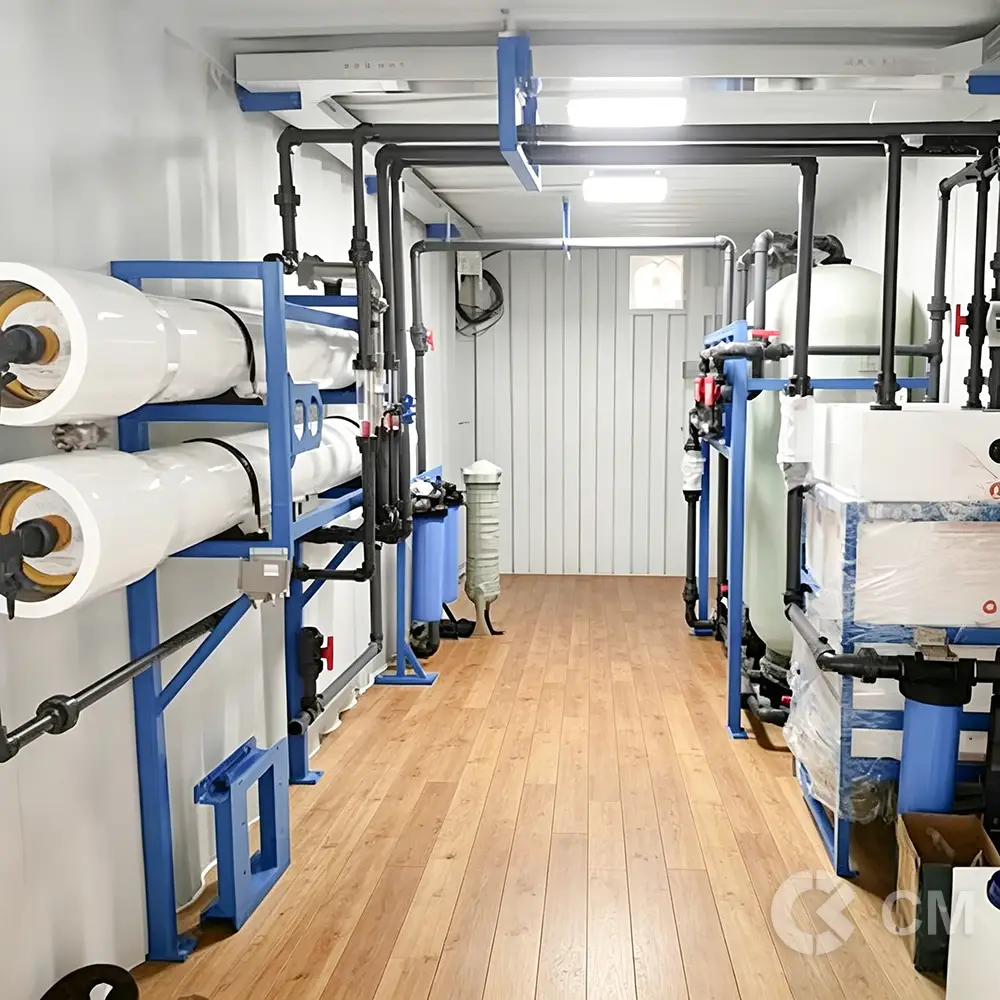

- Containerized RO system
- Modular RO plant
Each type of industrial reverse osmosis system is designed for specific industrial requirements.
Industrial RO System Design Considerations
Designing an efficient industrial RO system requires careful engineering.
1. Feed Water Quality
Key parameters that must be analyzed:
2. Recovery Rate
The recovery rate defines how much water is converted into product water.
BWRO Systems
50-75%
Brackish water applications
SWRO Systems
30-50%
Seawater desalination
⚠️ Higher recovery reduces waste but increases fouling risk.
3. Operating Pressure
Pressure depends on salinity:
- Low TDS → lower pressure (10-15 bar)
- Seawater → high pressure (55-80 bar)
4. Membrane Selection
Choosing the right membrane is critical for:
- Performance
- Energy efficiency
- System lifespan
5. Pretreatment Design
Pretreatment directly affects:
- Membrane fouling
- Maintenance frequency
- Operating cost
A well-designed pretreatment system is essential for a stable RO system design.
Industrial RO System Cost Analysis
Understanding the cost structure of an industrial RO system is essential for decision-making.
Cost Breakdown
- Equipment cost
- Installation
- Engineering design
Energy Consumption
40-60%
of total OPEX
Other Costs
- • Membrane replacement
- • Chemicals (antiscalant, cleaning)
- • Labor and maintenance
- ✓ Use low-pressure RO membranes
- ✓ Optimize system recovery rate
- ✓ Implement regular CIP cleaning
- ✓ Improve pretreatment efficiency
Reducing operating cost is a key advantage of a well-designed industrial reverse osmosis system.
Common Problems and Solutions in RO Systems
Even a well-designed RO water treatment system may encounter issues:
❗ Problem 1: Membrane Fouling
Cause:
- Organic matter accumulation
- Bacterial growth
Solution:
- Regular CIP cleaning
- Improve pretreatment
❗ Problem 2: Scaling
Cause:
- Calcium, magnesium deposits
Solution:
- Antiscalant dosing
- Softening pretreatment
❗ Problem 3: High Pressure Drop
Cause:
- Membrane blockage
Solution:
- Cleaning or replacement
Industrial RO System Applications
Industrial RO systems are widely used across industries:
Power Plants
Boiler feed water systems
Textile Industry
Dyeing wastewater reuse
Food & Beverage
Processing water treatment
Pharmaceutical
Ultrapure water systems
Municipal
Water treatment plants
Seawater
Desalination facilities
Each application requires a customized RO system design.
Why Choose Our Industrial RO System?
We provide high-performance industrial RO systems with:
Stable and reliable operation
Proven performance in demanding conditions
Customized engineering design
Tailored to your specific requirements
Competitive alternative to global brands
High quality at better value
20+ years manufacturing experience
Trusted by industries worldwide
Our solutions are widely used in industrial and municipal water treatment projects worldwide.
FAQ - Industrial RO System
Q1: What is the lifespan of an industrial RO system?
Typically 10-15 years with proper maintenance. The membrane elements usually need replacement every 3-5 years depending on feed water quality and operating conditions.
Q2: How often should RO membranes be cleaned?
When pressure drop increases by 10-15% or flux declines by 10-15% from baseline values. Typically this occurs every 3-6 months, but frequency depends on feed water quality.
Q3: What is the typical recovery rate?
50-75% for brackish water systems, 30-50% for seawater desalination. The optimal recovery rate depends on feed water composition and must be balanced against fouling risk.
Q4: How to choose the right RO membrane?
Based on feed water quality (TDS, SDI, temperature), required permeate quality, operating pressure, and system design. Consult with membrane manufacturers for specific recommendations.
Q5: What affects RO system cost the most?
Energy consumption (40-60% of OPEX) and membrane lifespan are the most significant cost factors. Proper pretreatment and system optimization can dramatically reduce total cost of ownership.
