1000LPH Stainless Steel Water Treatment Equipment
Key Features
System Overview
Our comprehensive water treatment system ensures the highest quality purification through multiple filtration stages
Complete Process Flow
Raw Water
Input Source
Raw Water Tank
Storage
Sand Filter
Pre-filtration
Carbon Filter
Purification
RO System
Final Treatment
Pure Water
Output
Raw Water → Raw Water Tank
Initial water collection and storage
Sand & Carbon Filtration
Multi-stage pre-treatment process
Softener (Optional)
Water conditioning as needed
RO System Processing
High-pressure reverse osmosis treatment
Pure Water Tank
Final purified water storage

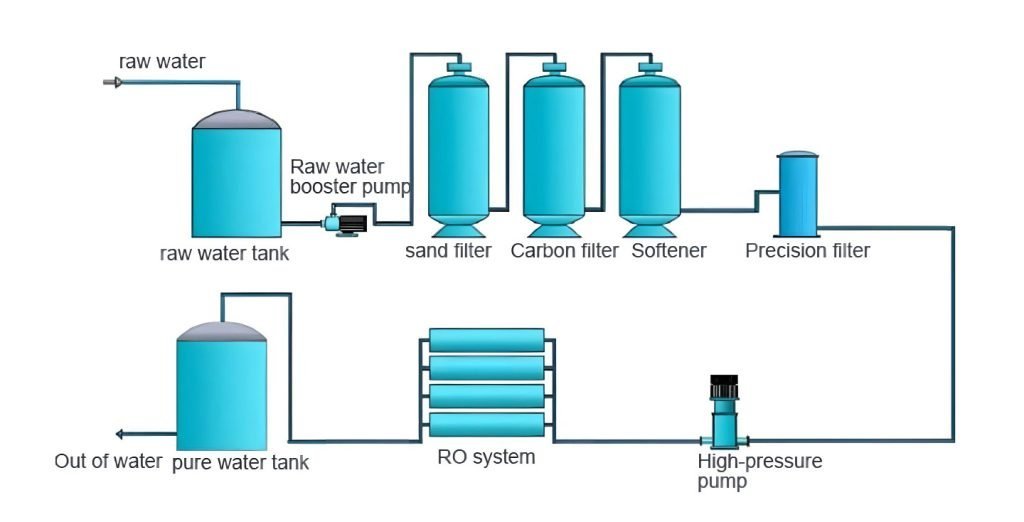

Complete Process Flow: Raw water → Raw water tank → Raw water pump → Sand filter → Carbon filter → Softener (optional) → Security filter → High pressure pump → Reverse osmosis system → Pure water tank
Working Process
Raw Water Pump
Provides the necessary pressure to quartz sand filter and active carbon filter.
Sand Filter
Removes turbidity, suspended matter, organic matter, colloid, and other contaminants.
Active Carbon Filter
Eliminates color, free chloride, organic matter, and harmful substances from water.
Security Filter
Prevents large particles, bacteria, and viruses from entering RO membrane with 5μm accuracy.
High Pressure Pump
Provides the high pressure required for RO membrane operation.
RO System
The main component of the plant. The RO membrane achieves 97% desalting rate, removing over 97% of ions.
Configuration Table
| No. | Product Name | Specifications | Qty. |
|---|---|---|---|
| 1 | Raw Water Pump | CHL4-4 380V 0.75KW | 1 |
| 2 | Mechanical Filter | ||
| Mechanical Filter | Stainless Steel Material Ф300×1400 | 1 | |
| Water Distributor | 1 major part | 1 set | |
| Quartz Sand | 200kg | 4 bags | |
| Automatic Valve | F71Q1 | 1 | |
| Pressure Gauge | 0.6MPa | 1 | |
| Pipe Valve Parts | Stainless Steel Material | 1 batch | |
| 3 | Activated Carbon Filter | ||
| Activated Carbon Filter | Stainless Steel Material Ф300×1400 | 1 | |
| Water Distributor | 1 major part | 1 set | |
| Automatic Valve | F71Q1 | 1 | |
| Coconut Shell Charcoal | 50 kg | 2 bags | |
| Pressure Gauge | 0.6 MPa | 1 | |
| Pipe Valve Parts | Stainless Steel Material | 1 batch | |
| 4 | Softener | ||
| Softener | Stainless Steel Material Ф300×1400 | 1 | |
| Water Distributor | 1 major part | 1 set | |
| Automatic valve | F117Q1 | 1 | |
| Resin | 75L | 3 bags | |
| Salt box | 70 L | 1 | |
| Pressure Gauge | 0.6 MPa | 1 | |
| Pipe Valve Parts | Stainless Steel Material | 1 batch | |
| 5 | Security Filter | ||
| Security Filter | 5 core ×10" | 1 | |
| PP Filter Element | PP 5μm×10" | 5 pcs | |
| 6 | Reverse Osmosis System | ||
| Reverse Osmosis Frame | Stainless Steel Material | 1 | |
| High Pressure Pump | CDLF2-13S 380V 1.5KW | 1 | |
| Stainless Steel Membrane Shell | 4040 | 4 pcs | |
| Reverse Osmosis Membrane | 4040 | 4 pcs | |
| Electric Control Box | Controller | 1 set | |
| Panel Flowmeter | 10GPM | 2 | |
| Pressure gauge with vibration-proof panel | 25kg/cm³ | 2 | |
| Pressure gauge with vibration-proof panel | 6kg/cm³ | 1 | |
| Low Voltage Switch | P06 | 1 | |
| Solenoid Valve | PU225-06A | 2 | |
| Float Switch | - | 2 | |
| Pipe Valve Parts | Stainless Steel Material | 1 batch |
System Components Details
Multimedia Filter
This machine effectively removes heavy metals including mercury, lead, cadmium, zinc, iron, manganese, chromium, and hydrogen sulfide from raw water. The filling material can be customized according to different raw water quality requirements.
Active Carbon Filter
Equipped with coconut shell activated carbon filling material, this filter absorbs small molecular weight organic compounds, chloride ions, and heavy metals from raw water. It significantly improves water color and taste.
Precision Filter
Features PP precision filtering elements and serves as the final pre-filter before the reverse osmosis system. It filters impurities larger than 1 micron in diameter, extending the service life of the RO system.
Single-Stage Reverse Osmosis System
Using a specialized high-pressure pump, water pressure is increased to 6-20 kg/cm². Under this pressure, water passes through the reverse osmosis membrane with surface pores of 0.0001 micron diameter. Chemical ions, bacteria, fungi, and viruses cannot pass through these microscopic holes, allowing only water molecules smaller than 0.0001 micron to pass.
Water Tank
Constructed from 304 stainless steel or PE material with 5-10mm thickness. Features polyurethane insulation for thermal protection.
Application Fields
Ultrapure water treatment
Pure water treatment
Drinking water, bottled water, sachet/pouch packaging
Electroplating, leather industry wastewater treatment
Brackish water, seawater, metallurgy, and light industry
Cosmetics, car battery, liquid fertilizer production
Edible cube ice, tube ice manufacturing
Schools, hotels, hospitals, laboratories, industrial boilers, power stations
Product Images

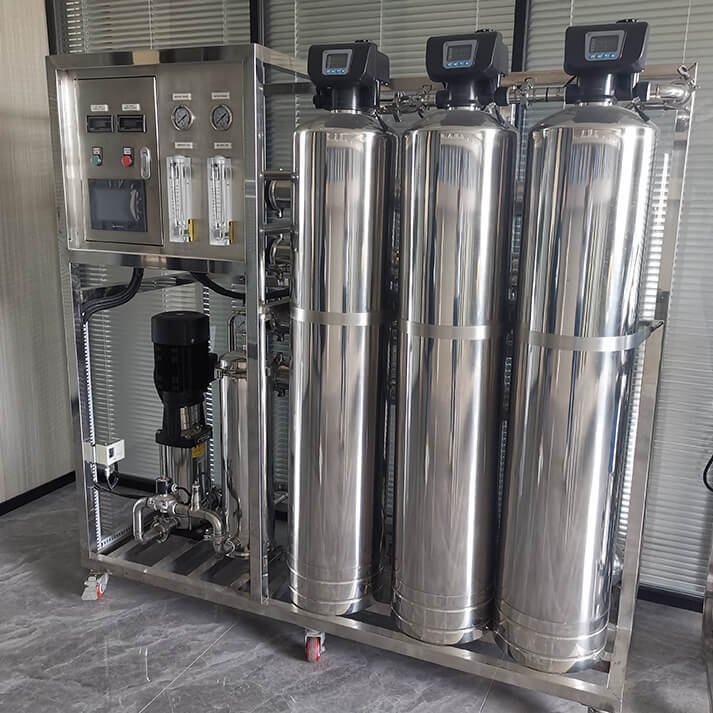

Water Treatment System - View 1

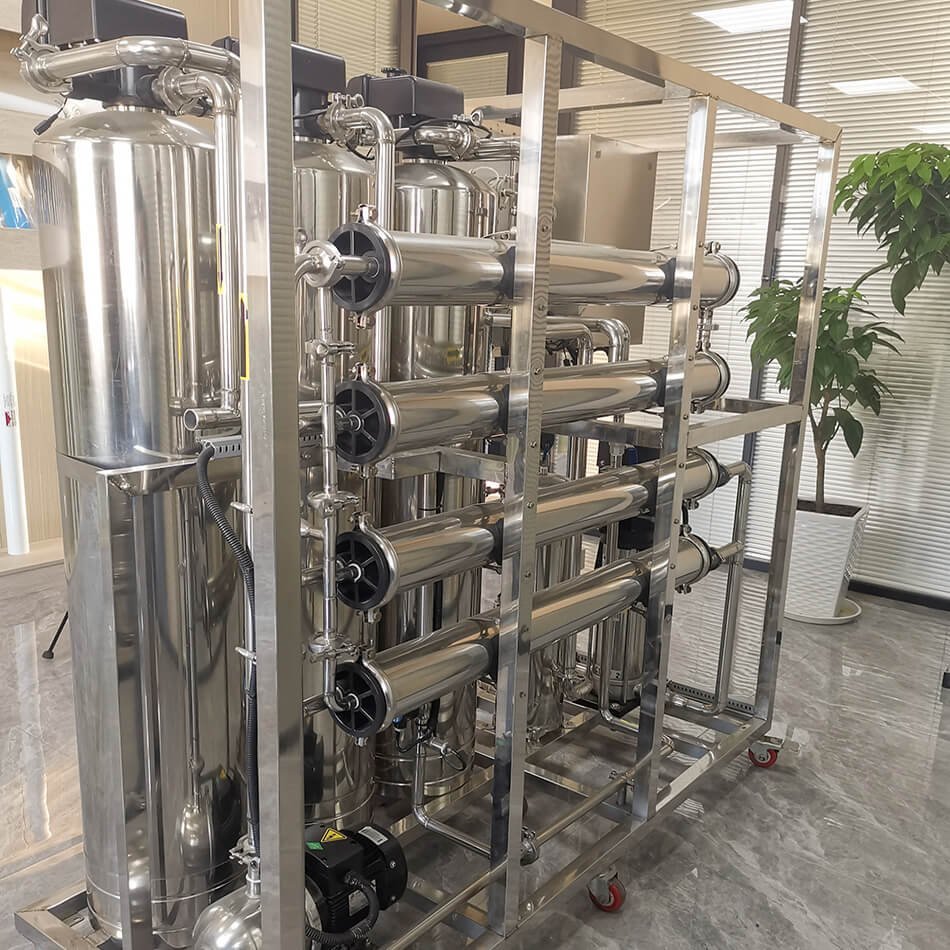

Water Treatment System - View 2

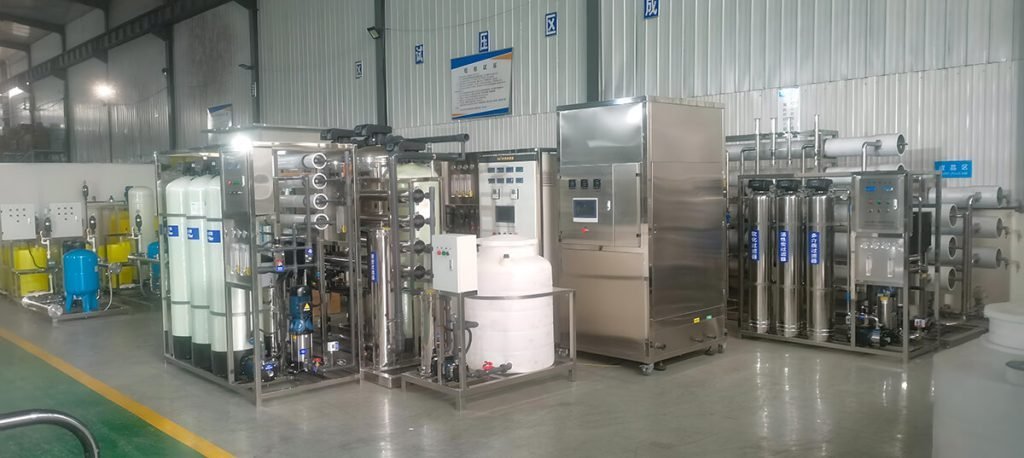

Water Treatment System - View 3
