2000L/H Reverse Osmosis Water Treatment System
Technical Specifications
Industrial Grade Solution
Designed for B2B applications in petrochemical and water treatment industries.
System Flow Diagram

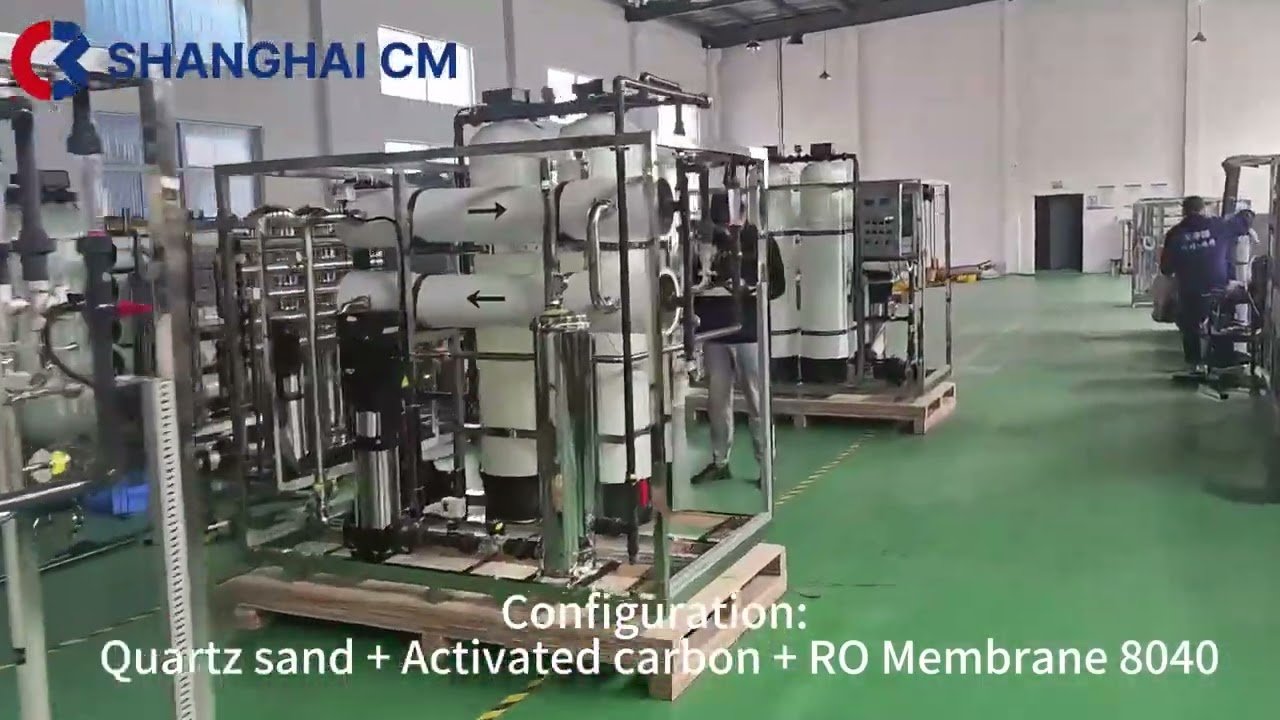

System Operation Video
Watch System Operation
Click to view on YouTube
Configuration Table
Raw Water Tank
3 m3
PE
Raw Water Pump
CHM4-3
Stainless Steel
| Item No. | Product Name | Specification and Model | Material | Quantity |
|---|---|---|---|---|
| 1 | Raw Water Tank | 3 m3 | PE | 1 unit |
| 2 | Raw Water Pump | CHM4-3 | Stainless Steel | 1 unit |
| 3 | Piping and Fittings | DN25 | UPVC | 1 batch |
| 4 | Inlet Solenoid Valve | DN32 | UPVC | 1 unit |
| 5 | Multi-Media Filter | DN32 | UPVC | 1 unit |
| 6 | Filter | Φ400×1650 | FRP | 1 unit |
| 7 | Automatic Filter Valve | F67Q1 | FRP | 1 unit |
| 8 | Quartz Sand | F67Q1 | FRP | 350KG |
| 9 | Piping and Fittings | DN25 | UPVC | 1 set |
| 10 | Activated Carbon Filter | DN25 | UPVC | 1 set |
| 11 | Filter | Φ400×1650 | FRP | 1 unit |
| 12 | Automatic Filter Valve | F67Q1 | FRP | 1 unit |
| 13 | Activated Carbon | F67Q1 | FRP | 100KG |
| 14 | Piping and Fittings | DN25 | UPVC | 1 set |
| 15 | Precision Filter | DN25 | UPVC | 1 set |
| 16 | Precision Filter | 5 core × 30" | Stainless Steel | 1 unit |
| 17 | Filter Cartridge | 30 inches | Stainless Steel | 5 units |
| 18 | Primary RO Unit | 30 inches | Stainless Steel | 5 units |
| 19 | High-Pressure Pump | CDL4-12 | Stainless Steel | 1 unit |
| 20 | RO Membrane | CM-BW-8040 | Composite Membrane | 2 units |
| 21 | High-Pressure Membrane Housing | 8 inches, 1 core | Glass Fiber Reinforced Plastic | 2 units |
| 22 | Pipeline Flow Meter | LZS-25 | Acrylic | 2 units |
| 23 | Vibration-Reducing Pressure Gauge | 0～2.5MPa | Acrylic | 2 units |
| 24 | Pressure Gauge | 0～1MPa | Acrylic | 1 unit |
| 25 | Conductivity Meter | 0～1MPa | Acrylic | 2 sets |
| 26 | Main Unit Frame | 0～1MPa | Stainless Steel | 1 unit |
| 27 | Piping and Fittings | DN25 | UPVC+SS316 | 1 set |
| 28 | Purified Water Storage Tank | 2T | PE | 1 unit |
| 29 | Control System | 2T | PE | 1 unit |
| 30 | Pressure Switch | 0～0.6MPa | PE | 1 unit |
| 31 | Solenoid Valve | 0～0.6MPa | PE | 2 units |
Working Process
Raw water pump
Provide the pressure to quartz sand filter/active carbon filter.
Sand filter
Get rid of turbidity, suspended matter, organic matter, colloid, etc.
Active Carbon filter
Remove the color, free chloride, organic matter, harmful matter, etc.
Security filter
Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
High pressure pump
Provide the high pressure to RO membrane.
RO Membrane
Main part of the plant. The RO membrane's desalting rate can reach 97%, removing over 97% ions.
Technological Process
Filter Systems Details
Multimedium filter
This machine can remove heavy metal including mercury, lead, cadmium, zinc, iron, manganese, chromium, hydrogenate from the raw water. The filling material in this filter can be changed according the different quality raw water.
Active carbon filter
The filling material in this filter is nut shell activated carbon. It can absorb the small molecular weight organic compounds, the chloridion and heavy metal in the raw water. By this filter, the color and the mouth feel of the water will be improved.
Precision filter
PP precision filtering elements is filled in this equipment. This equipment is the last pre-filter before the reverse osmosis system. The function of this equipment: filter the impurity in the water which diameter is larger than 1 micron. By this machine, the service time of the reverse osmosis system can be extended more.
One grade osmosis reverse system
By the special high pressure pump, the water pressure will be increased to 6-20 kg. By the pressure, water will flow through the reverse osmosis film. There are many holes on the surface of the film which diameter is 0.0001 micron. Because of these small holes, chemical ion, bacteria, fungi and viruses can not go through, only water molecules which volume is smaller than 0.0001 micron.
Application Fields
Electronic industry, semiconductor industry ultrapure water treatment
Chemical industry, pharmaceutical industry pure water treatment
Food, beverage, drinking water, bottled drinking water, sachet/pouch packing pure drinking water treatment
Electroplating and leather industry waste water treatment
Brackish water desalination, sea water desalination, metallurgy and light industry pure water treatment
Cosmetic products, car battery, liquid fertilizer production pure water treatment
Edible cube ice, tube ice etc.
School, hotel, hospital, laboratory, surface treatment hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment
Frequently Asked Questions
How does a reverse osmosis system work?
A reverse osmosis system removes dirt, bacteria, and chemicals from your drinking water. It does this by passing water through a series of filters that each target a specific contaminant. Since the filters are semipermeable membranes, they allow water to pass through them while trapping undesirable molecules. The resulting water is purer than standard tap water.
How often do I need to replace the filters in my reverse osmosis system?
Based on our experience, depending on your water consumption and water quality, we suggest that the reverse osmosis membrane is usually replaced once every one and a half to three years, and the pretreatment part is usually replaced every six months to one year, which can be judged by the amount of water output and the TDS value of the water.
Are you a manufacturer?
We are a reverse osmosis equipment manufacturer and can accept customized production.
How long is the delivery period?
All of our equipment is made to order, and the normal production time is 15-25 days.
What methods of payment can I use?
We can accept T/T, L/C, Western Union, Paypal, cryptocurrency and so on. For new customers, we only accept the 30% T/T of the payment, or if you have been with us for years and run into cash flow pressure, we do offer OA credit.
May I visit the factory?
Of course, please contact us to confirm the time and number of people before visiting, so that we can make arrangements in advance, and we also support video factory inspection.
Can we have a video conference?
Of course, we can use Zoom and VooV Meeting for video conferencing.
Is there after-sales support?
We support pre-sales technical guidance, post-sales product usage maintenance, and troubleshooting.
