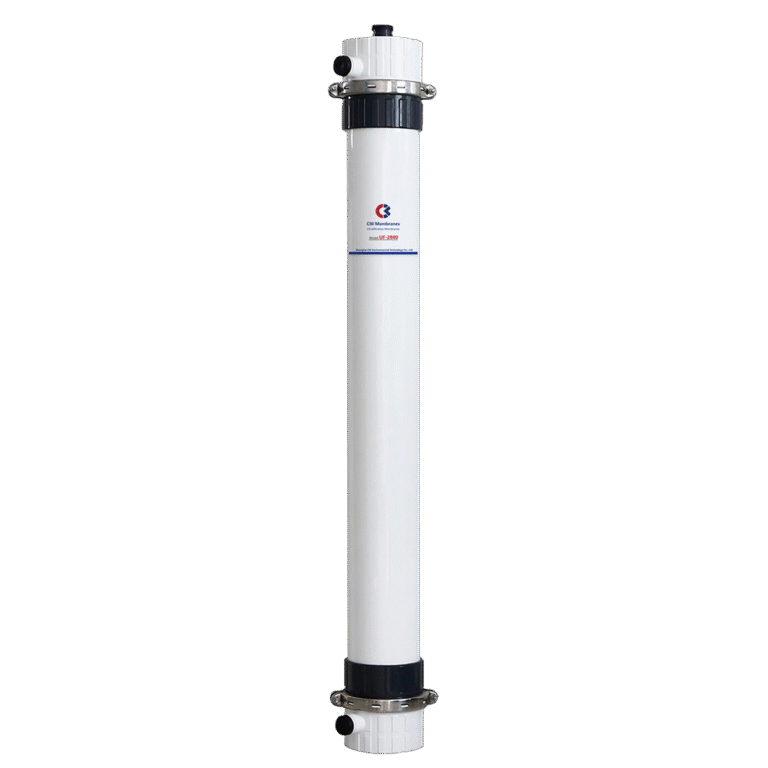

UF2880 PVDF Ultrafiltration Membrane

Ultrafiltration Membrane UF-2880 (SFP-2880 Module) is a high-performance water treatment module crafted from premium PVDF (polyvinylidene fluoride) material. With a filtration accuracy of 0.01 microns, it effectively retains bacteria, colloids, suspended solids, and macromolecular organic matter, ensuring stable output water quality.

Key Features:
• High strength membrane fibers with strong antifouling properties
• Suitable for high-turbidity water sources
• Energy consumption reduced by over 20%
• Compatible with frequent backwashing and chemical cleaning
• Service life of 3-5 years
• Modular design for easy installation and maintenance

UF2880 PVDF Ultrafiltration Membrane
Parameter Specification
Membrane Polymer PVDF
Nominal Membrane Area 77 ㎡
Nominal pore size 0.01 μm
Fiber Dimensions ID 0.7 mm / OD 1.3mm
Operating Mode Outside to Inside Filtration
