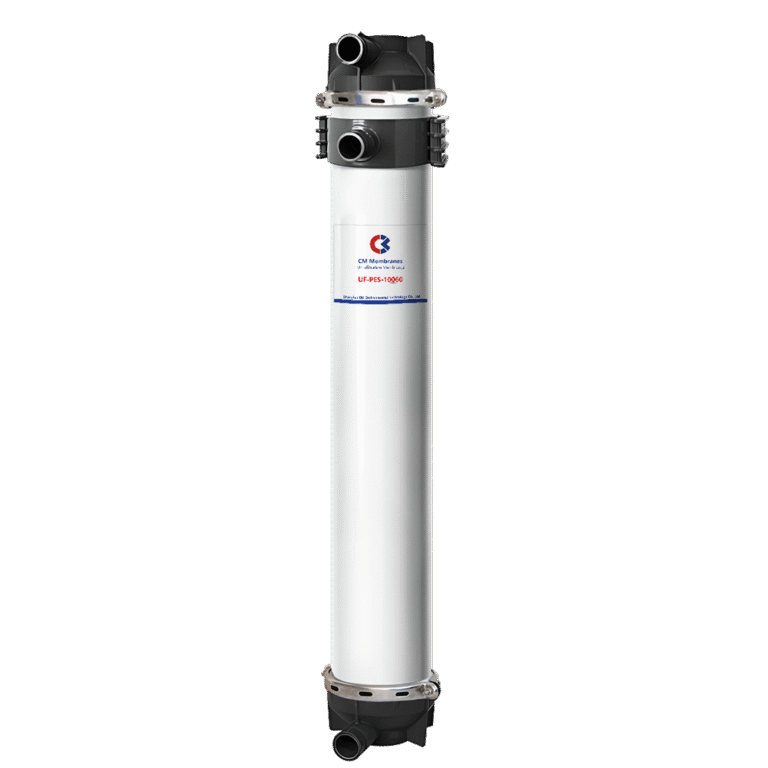

UF 7H-10060 PES Ultrafiltration Membrane

CM 10060-7B is manufactured as the equivalent, replacement, alternative, retrofit and analogue to Suez GE ZeeWeed 700B Seven Bore ZW700B-10060/UF10/7B/S/0.9/60, which are used for production of process water, potable water and wastewater.

Major applications are the filtration of surface water, potable water, industrial wastewater and municipal sewage. CM 10060-7B ultrafiltration modules use CM's Seven Bore fiber technology with an inside-out flow direction. Seven Bore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced ultrafiltration technology, which makes CM 10060-7B ultrafiltration membrane modules the most robust PES (polyether sulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous

Parameter	Specification
Membrane Polymer	PES
Nominal Membrane Area	60 ㎡
Nominal pore size	0.02 μm
Fiber Dimensions	4mm
Bore Diameter	0.9 mm
Operating Mode	Inside to Outside Filtration

Parameter	Specification
Typical Filtrate Flux Range	40-120 L/㎡/ｈ
Maximum Applied Feed Pressure	0.6 MPa
Maximum Trans-membrane Pressure	0.21 MPa
Maximum Backwash Pressure	0.25 MPa
Operating Temperature Range	5-40 ℃
pH Operating Range	2-12 (During Chemical Washing 1-13)
