How does a reverse osmosis system work?

Are you concerned about the quality of your water? Impurities can affect your health and damage industrial equipment. A reverse osmosis system provides a powerful and reliable solution to this problem.

A reverse osmosis (RO) system purifies water by using high pressure to force it through a special semipermeable membrane. This membrane has extremely small pores that block almost all contaminants, including salts, minerals, and chemicals. Only pure water molecules can pass through, leaving you with clean, safe water.

This sounds straightforward, but understanding the details is key. When I first got into manufacturing, I saw firsthand how water quality could make or break a project. The wrong minerals could cause defects in parts or ruin expensive machinery. This technology isn't just for drinking water; it's a critical tool in many industries. Let's look closer at how these systems operate, how to pick the right one for your specific needs, and what it takes to get one installed. This knowledge will help you make a smart investment.

---

How does reverse osmosis work step by step?

You know RO purifies water, but the process can seem like a black box. Trying to picture what happens inside the system can be confusing. Let’s follow the water's journey.

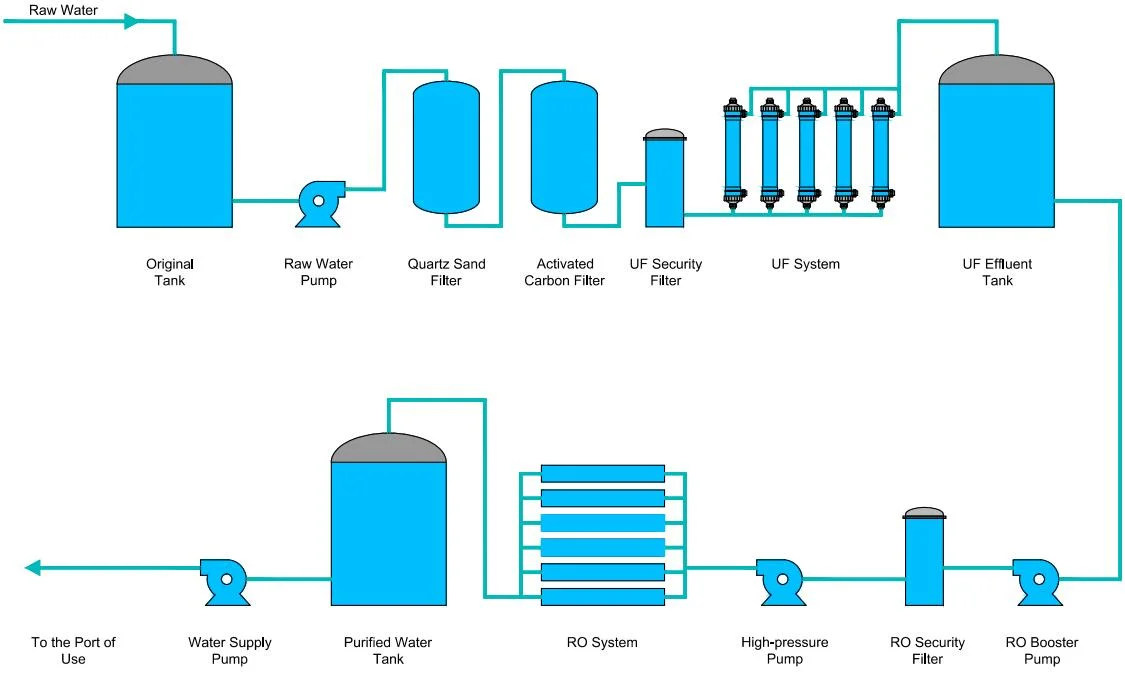

Water first enters a series of pre-filters that catch larger particles like sand, rust, and chlorine. Next, a high-pressure pump pushes this pre-filtered water against the RO membrane. Here, pure water passes through while contaminants are washed away. Finally, the purified water is often polished by a post-filter before being stored.

Let's dive deeper into these stages. Seeing how each part works together shows why RO is so effective. I learned early on in my factory that skipping maintenance on any single stage can cause the whole system to fail. It’s a chain where every link is important.

Stage 1: Pre-Filtration

Before the water ever reaches the main membrane, it has to be cleaned of large debris. This is the job of the pre-filters. Without them, the RO membrane, which is the most expensive part of the system, would get clogged and damaged very quickly. Think of it as protecting your star player.

There are usually two main types of pre-filters:

• Sediment Filter: This is the first line of defense. It's a simple filter that physically blocks particles you might see, like dirt, sand, rust, and silt. Its job is to get rid of the bigger stuff.
• Carbon Filter: This filter comes next. It uses activated carbon to remove chemical contaminants, especially chlorine. Chlorine is added to city water to kill bacteria, but it will rapidly degrade and destroy most types of RO membranes. The carbon filter adsorbs chlorine, protecting the membrane and also improving the water's taste and odor.

Stage 2: The Reverse Osmosis Membrane

This is the heart of the system. After pre-filtration, a pump increases the water pressure significantly. This high pressure is needed to overcome the natural process of osmosis, forcing water in the reverse direction—from a more concentrated solution (tap water with contaminants) to a less concentrated solution (pure water).

The membrane itself is a marvel of material science. It's a sheet of polymer with microscopic pores, often around 0.0001 microns in size. These pores are so small they let water molecules pass through but block larger molecules like dissolved salts, heavy metals (lead, mercury), bacteria, and viruses.

The water splits into two streams at the membrane:

1. Permeate (Pure Water): The clean water that successfully passes through the membrane.
2. Brine (Waste Water): The concentrated stream of water carrying all the rejected contaminants away. This stream is continually flushed from the system to prevent the membrane from scaling up.

Stage 3: Post-Filtration and Storage

The purified water isn't quite ready yet. It has passed through the membrane and is now very pure, but it might have a slightly "flat" taste. Also, it's produced slowly, drop by drop, so it needs to be collected.

• Storage Tank: The permeate flows into a pressurized storage tank. When you open your faucet, the pressure in the tank pushes the water out.
• Post-Filter (Polishing Filter): As the water leaves the storage tank on its way to your faucet, it usually passes through one final carbon filter. This is called a polishing filter. Its job is to remove any remaining tastes or odors that the water might have picked up while sitting in the tank. This ensures the final product is crisp and clean.

This multi-stage process guarantees a very high level of purification, which is why it’s trusted in homes, hospitals, and high-tech factories.

---

How do I determine which reverse osmosis unit I need?

Choosing an RO system can be overwhelming with so many models and specifications. If you pick the wrong one, you waste money and fail to solve your water problem. Here's how to choose correctly.

First, you must test your water to understand its chemistry, especially the Total Dissolved Solids (TDS) and pH levels. Then, figure out how much pure water you need daily and what purity standard you must meet. Armed with this information, a reputable supplier can help you choose or customize the perfect system.

This process is critical. I've worked with many clients who needed pure water for their manufacturing processes, like for CNC machine coolants or for cleaning sensitive electronic parts. We always start with the same two questions: What’s in your water now, and what do you need it to be? Let's break down how you can answer these questions for yourself.

Step 1: Analyze Your Water Source

You cannot solve a problem you don't understand. Before you buy anything, you need a detailed report of your water quality. You can get test kits online or send a sample to a professional lab.

Key things to look for in the report are:

• Total Dissolved Solids (TDS): This measures the total amount of dissolved minerals, salts, and metals in the water, expressed in parts per million (ppm). Standard tap water can range from 100 to 500 ppm. High TDS is the primary reason people get an RO system.
• pH Level: This tells you if your water is acidic or alkaline. Most RO membranes operate best within a specific pH range. Highly acidic or alkaline water can damage them.
• Hardness: This is the amount of dissolved calcium and magnesium. Very hard water can cause scale to build up on the RO membrane, reducing its efficiency and lifespan. You might need a water softener as a pre-treatment.
• Specific Contaminants: Are you concerned about lead, arsenic, iron, or nitrates? Your water test should check for these if they are common issues in your area.

I once consulted for a small plating business. Their products kept coming out with tiny blemishes. After much investigation, we tested their water and found very high levels of iron. The iron was reacting with their plating chemicals. An RO system designed to specifically remove that iron solved their quality control nightmare overnight.

Step 2: Define Your Water Demand

Next, you need to know how much pure water you need and how pure it has to be.

User Type	Daily Water Need (GPD)	Required Purity Standard	Common Use Case
Residential Home	25-75 GPD	< 50 ppm TDS	Drinking, cooking, aquariums
Small Restaurant	100-500 GPD	< 50 ppm TDS	Drinking water, ice machines, beverage prep
Car Wash	500-2,000 GPD	< 10 ppm TDS	Spot-free rinse
CNC Machining	50-200 GPD	< 25 ppm TDS	Mixing with coolant concentrate
Electronics Mfg.	Varies	< 1 ppm TDS (Ultrapure)	Rinsing circuit boards and components

RO systems are rated in Gallons Per Day (GPD). A typical under-sink home unit might be rated at 50 GPD. This doesn't mean you get 50 gallons instantly; it means the system can produce that much over a 24-hour period under ideal conditions (water pressure, temperature). For industrial applications, you'll need a much larger, commercial-grade system. Always choose a system with a slightly higher GPD rating than your minimum daily need to ensure you don't run out.

Step 3: Consult a Supplier

With your water report and your demand analysis in hand, you can now talk to an equipment supplier. A good supplier won't just sell you a box. They will act as a consultant. They will look at your data and recommend a system tailored to your needs. They might suggest specific pre-filters for iron or a water softener for hardness. For my business, finding reliable suppliers who understand the technical side is just as important as the equipment itself. They help ensure the solution is effective and cost-efficient in the long run.

---

Can I install a reverse osmosis system myself?

You've chosen your RO system, and now it's sitting in a box. Hiring a professional plumber costs money, so you're probably wondering if you can install it yourself.

Yes, you can often install a standard under-sink residential RO system on your own, provided you have some basic plumbing skills and the right tools. These kits are designed for DIY installation. However, for larger whole-house or complex industrial systems, professional installation is strongly recommended for safety and performance.

I'm a big believer in doing things yourself to learn and save money. But I've also learned that some jobs are best left to the experts. My very first workshop had a small RO unit for a specific task. I installed it myself to save a few hundred dollars. I thought I did a perfect job, but a tiny fitting had a slow drip I didn't notice. Over the weekend, it caused a surprising amount of water damage. That mistake cost me more than the plumber would have. Let's weigh the pros and cons.

Comparing DIY vs. Professional Installation

Deciding whether to do it yourself comes down to balancing cost, risk, and complexity. Here’s a breakdown to help you decide.

Aspect	DIY Installation	Professional Installation
Cost	Low. You only pay for the unit and maybe a few tools.	High. You pay for labor, which can be several hundred dollars.
Skills Required	Basic plumbing skills, ability to follow instructions carefully.	None required from you. The professional handles everything.
Tools Required	Drill, adjustable wrench, tube cutter, screwdriver.	The installer brings all necessary professional-grade tools.
Time	Can take 2-4 hours, maybe more if you run into problems.	Usually completed in 1-2 hours.
Risk	High risk of leaks if not done correctly. Potential for water damage. You could void the product warranty.	Low risk. Professionals are insured against damages. They guarantee their work. Warranty remains valid.
Best For	Standard under-sink RO kits for residential use.	Whole-house systems, commercial systems, or if you have no plumbing experience.

A Quick Look at a DIY Install

If you decide to tackle a typical under-sink installation, here are the general steps you'll follow:

1. Shut Off the Water: Turn off the cold water supply valve under your sink.
2. Install the Feed Water Adapter: You'll connect a special valve to your cold water line. This will divert some water to the RO system.
3. Mount the Faucet: This often requires drilling a hole in your countertop or sink. This is the part that makes most people nervous.
4. Install the Drain Saddle: You'll clamp a fitting onto your sink's drain pipe. This is where the wastewater (brine) from the RO system will be discharged.
5. Position the System and Tank: Place the RO unit and the storage tank in their positions under the sink.
6. Connect the Tubing: You'll cut and connect color-coded plastic tubes between all the components: the feed water, the faucet, the storage tank, and the drain.
7. Start and Check for Leaks: Turn the water back on slowly and meticulously check every single connection point for drips. This is the most crucial step. Let the system run for a while and check again.

Even if you follow the instructions perfectly, things can go wrong. Fittings can be cross-threaded, or tubes might not be seated properly. So, if you choose the DIY route, be patient and double-check everything.

---

Conclusion

Understanding your RO system is key to ensuring you get reliably pure water. Remember that it works in stages to filter contaminants, and choosing the right one starts with analyzing your water.
